Inspection Procedure

  1. PERFORM ACTIVE TEST BY TECHSTREAM (OPERATE INTAKE AIR CONTROL VALVE)
    1. Connect Techstream to the DLC3.
    2. Start the engine and turn the tester on.
    3. Enter the following menus: Powertrain / Engine and ECT / Active Test / Activate the VSV for Intake Control.
    4. Check if operating noise can be heard when operating the intake control valve using Techstream.

    OK: Operating noise can be heard.

    OK: CHECK FOR INTERMITTENT PROBLEMS

    NG: Go to Next Step

  2. CHECK AIR INTAKE VALVE (OPERATION)
    1. Disconnect the VCV ACIS connector.
    2. Apply battery voltage between the terminals of the air intake valve connector.
    3. Check air intake valve operation.
    4. Fig 1: Identifying VCV ACIS Connector Terminal
      G05823296Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK: Operating noise can be heard.

    NG: REPLACE INTAKE AIR SURGE TANK

    OK: Go to Next Step

  3. CHECK HARNESS AND CONNECTOR (VCV ACIS - ECM, VSV ACIS - EFI NO. 2 FUSE)
    1. Check the wire harness between the intake air control connector and the ECM connector.
      1. Disconnect the VCV ACIS connector.
      2. Disconnect the E5 ECM connector.
      3. Measure the resistance according to the value (s) in the table below.

      Standard resistance (Check for open)

      RESISTANCE SPECIFICATION CHART

      Tester Connection Specified Condition
      VCV ACIS (E50-2) - ACIS (E5-3) Below 1 Ω

      Standard resistance (Check for short)

      RESISTANCE SPECIFICATION CHART

      Tester Connection Specified Condition
      VCV ACIS (E50-2) or ACIS (E5-3) - Body ground 10 kΩ or higher
    2. Check the wire harness between the VCV ACIS connector and the EFI No. 2 fuse.
      1. Disconnect the air intake valve connector.
      2. Remove the EFI No. 2 fuse from the engine room R/B No. 2.
      3. Measure the resistance according to the value (s) in the table below.

      Standard resistance (Check for open)

      RESISTANCE SPECIFICATION CHART

      Tester Connection Specified Condition
      VCV ACIS (E50-1) - EFI No. 2 fuse (2) of Engine room No. 2 relay block Below 1 Ω

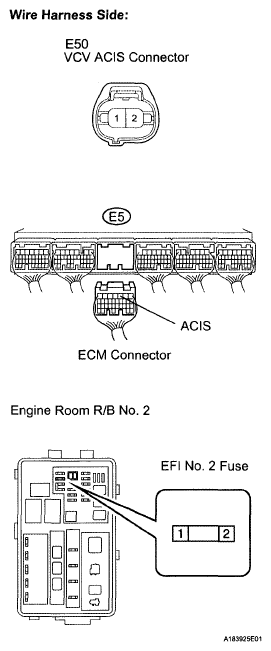

      Fig 2: Identifying VCV ACIS Connector Terminal E50 And ECM Connector E5
      G05823297Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

      OK: REPLACE ECM
