Inspection Procedure

1. Turn the engine switch on (IG).
2. Measure the voltage according to the value (s) in the table below.

Standard voltage

Fig 1: Identifying ECM Connector A5 And E4

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE

NG: Go to Next Step

1. Disconnect the E4 ECM connector.
2. Measure the resistance according to the value (s) in the table below.

   Standard resistance (Check for open)

   RESISTANCE SPECIFICATION CHART



   Tester Connection	Specified Condition
   E1 (E4-7) - Body ground	Below 1 Ω

3. Reconnect the ECM connector.
Fig 2: Identifying E4 ECM Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to Next Step

1. Turn the engine switch on (IG).
2. Measure the voltage according to the value (s) in the table below.

Standard voltage

Fig 3: Identifying ECM Connector A5 And E4

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK: Go to step   6

NG: Go to Next Step

1. Remove the IGN fuse from the cowl side junction block RH.
2. Measure the resistance of the IGN fuse.

   Standard resistance:

   Below 1 Ω

3. Reinstall the IGN fuse.
Fig 4: Identifying IGN Fuse From Cowl Side Junction Block RH
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE FUSE

OK: Go to Next Step

1. Remove the IG2 relay from the engine room R/B No. 2.
2. Measure the resistance according to the value (s) in the table below.

Standard resistance

Fig 5: Inspecting Ignition Relay No. 2

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE IGNITION RELAY NO. 2

OK: CHECK AND REPLACE SMART ACCESS SYSTEM WITH PUSH-BUTTON START

1. Turn the engine switch on (IG).
2. Measure the voltage according to the value (s) in the table below.

Standard voltage

Fig 6: Identifying ECM Connector A5 And E4

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE ECM

OK: Go to Next Step

1. Remove the EFI fuse from the engine room J/B No. 2.
2. Measure the resistance of the EFI fuse.

   Standard resistance:

   Below 1 Ω

3. Reinstall the EFI fuse.
Fig 7: Identifying EFI Fuse From Engine Room J/B No. 2
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE FUSE

OK: Go to Next Step

1. Remove the integration relay from the engine room J/B No. 2.
2. Measure the resistance according to the value (s) in the table below.

Standard resistance

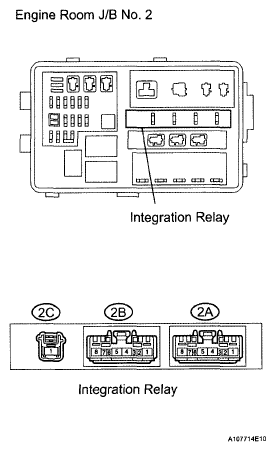

Fig 8: Identifying Integration Relay Terminal 2C, 2B And 2A

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE INTEGRATION RELAY

OK: Go to Next Step

1. Check the harness and the connectors between the integration relay and the ECM.
   1. Remove the integration relay from the engine room J/B No. 2.
   2. Disconnect the A5 ECM connector.
   3. Measure the resistance according to the value (s) in the table below.

   Standard resistance (Check for open)

   RESISTANCE SPECIFICATION CHART



   Tester Connection	Specified Condition
   2A-6 - MREL (A5-13)	Below 1 Ω

   Standard resistance (Check for short)

   RESISTANCE SPECIFICATION CHART



   Tester Connection	Specified Condition
   2A-6 or MREL (A5-13) - Body ground	10 kΩ or higher

2. Check the harness and the connectors between the integration relay and body ground.

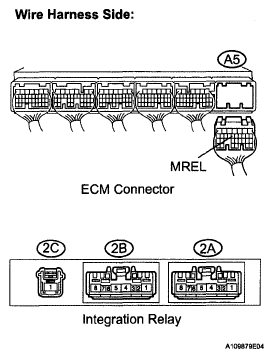

Fig 9: Identifying A5 ECM Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the integration relay from the engine room J/B No. 2.
2. Measure the resistance according to the value (s) in the table below.

Standard resistance (Check for open)

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: CHECK AND REPAIR HARNESS AND CONNECTOR (TERMINAL +B OF ECM - BATTERY POSITIVE TERMINAL)
