Display Signal Circuit between Multi-display and Radio Receiver: Wiring Diagram

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.

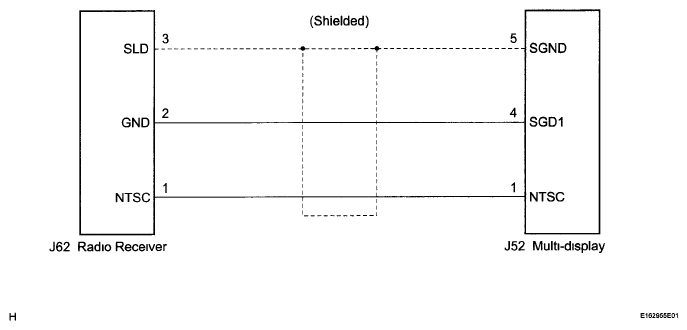

Fig 1: Display Signal Circuit Between Multi-Display And Radio Receiver - Wiring Diagram
G05753724Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
