Entry Lock Switch Circuit: Wiring Diagram

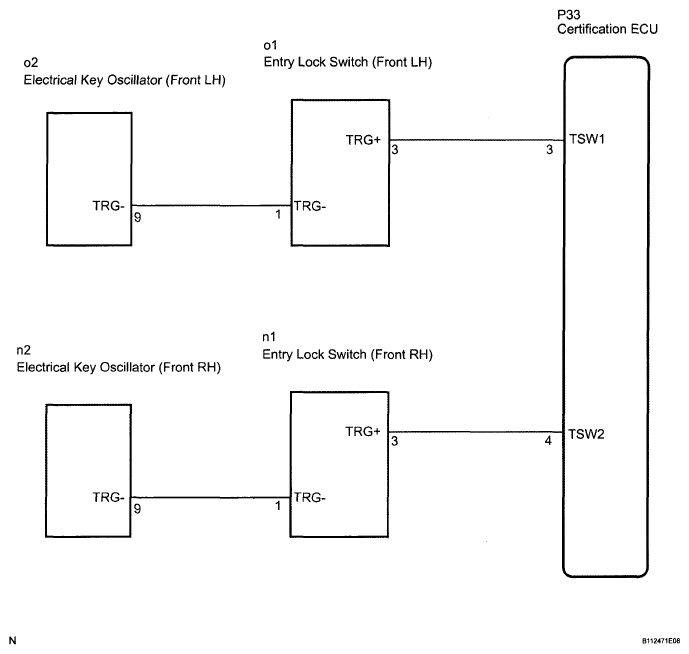

Fig 1: Entry Lock Switch Circuit - Wiring Diagram
G05828030Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
