Engine Unit: Components

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.

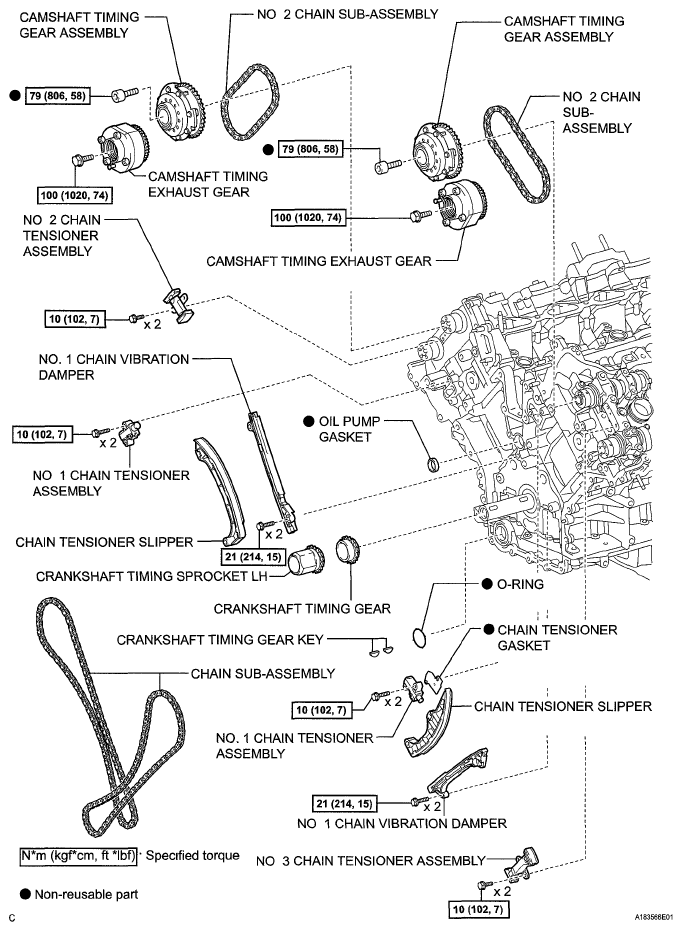

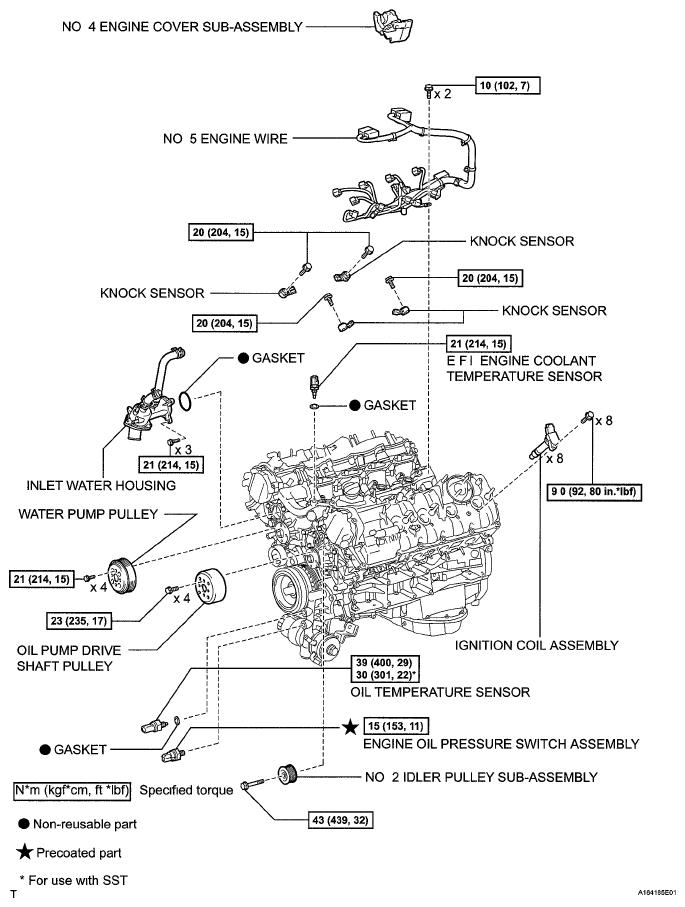

Fig 1: Engine Unit Components (1 Of 15) with Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

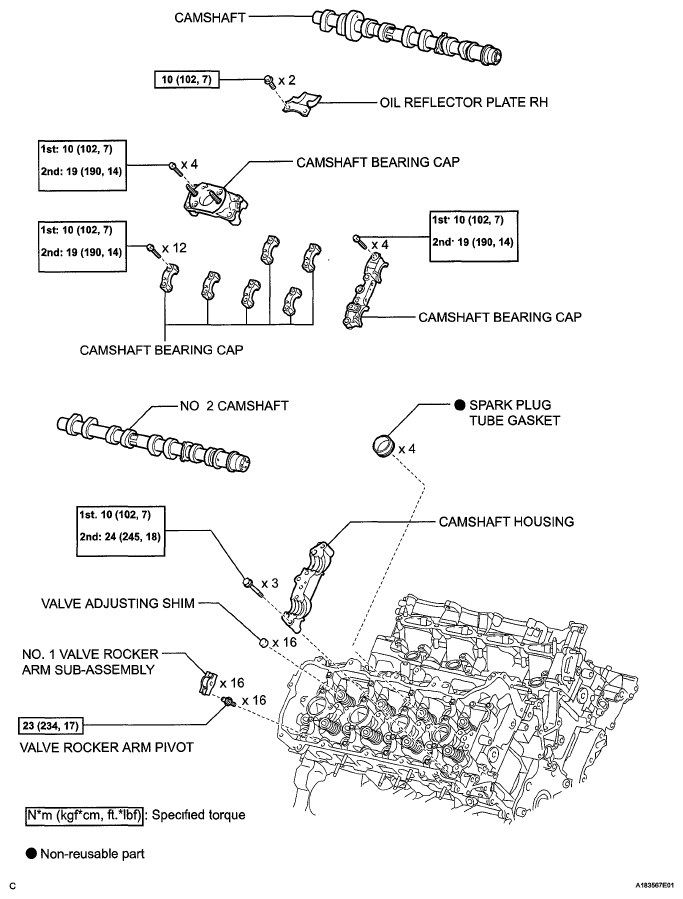

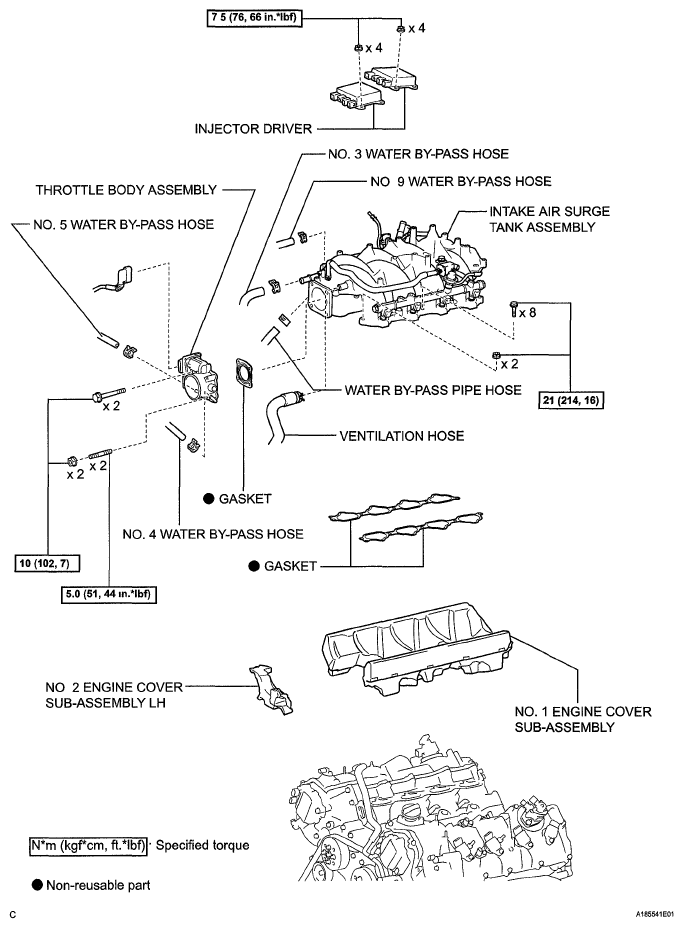

Fig 2: Engine Unit Components (2 Of 15) with Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

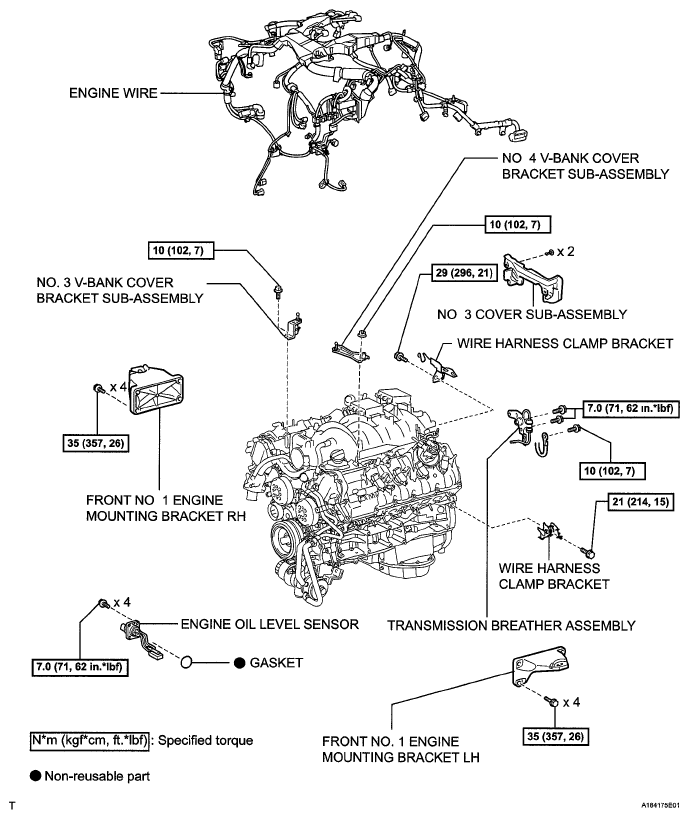

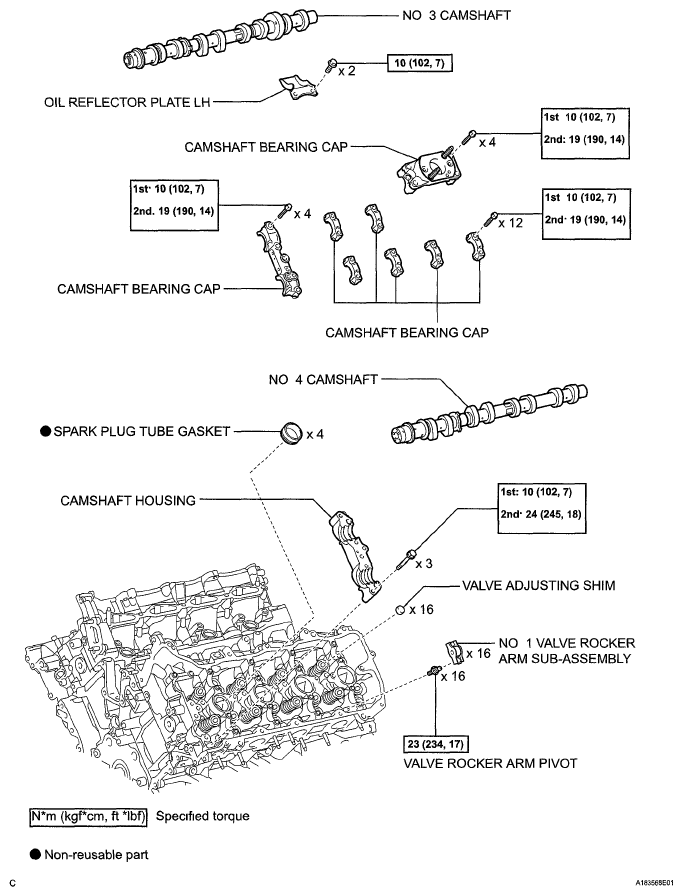

Fig 3: Engine Unit Components (3 Of 15) with Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

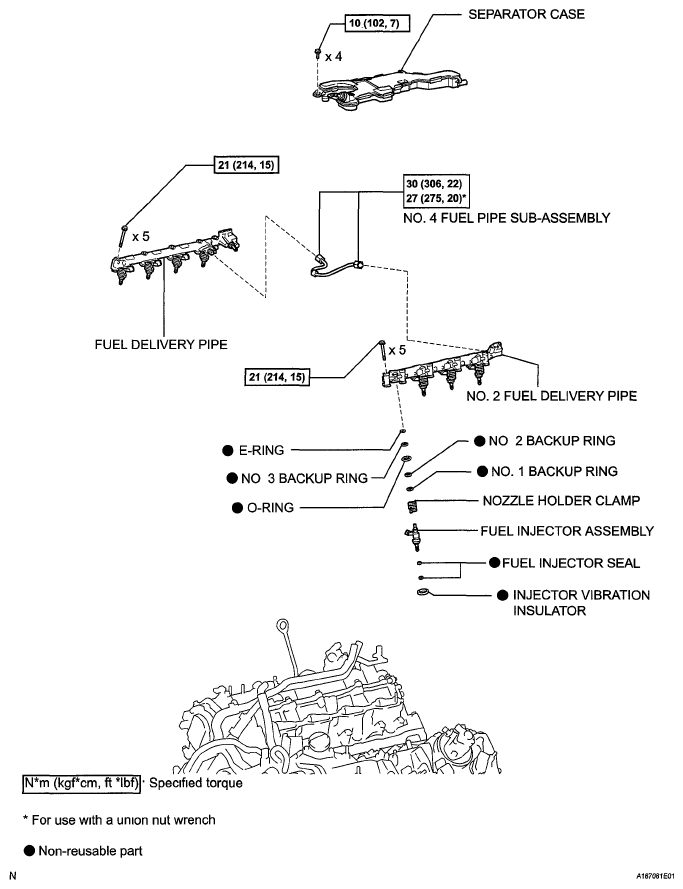

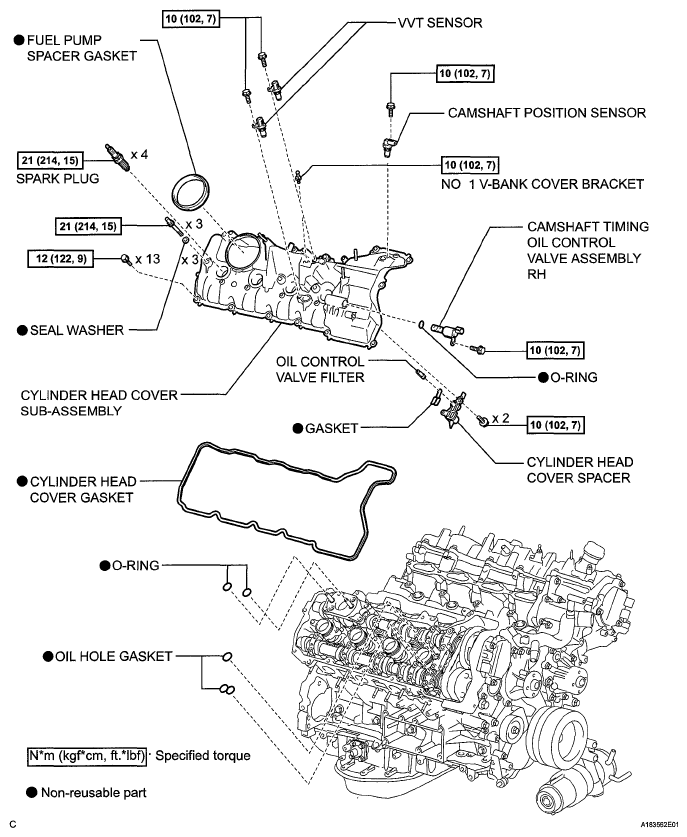

Fig 4: Engine Unit Components (4 Of 15) with Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

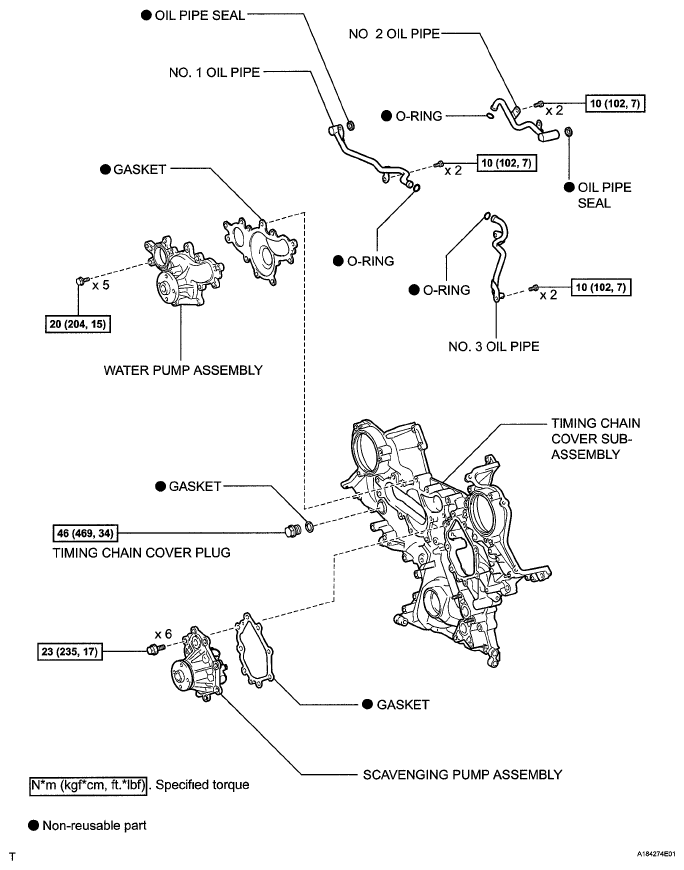

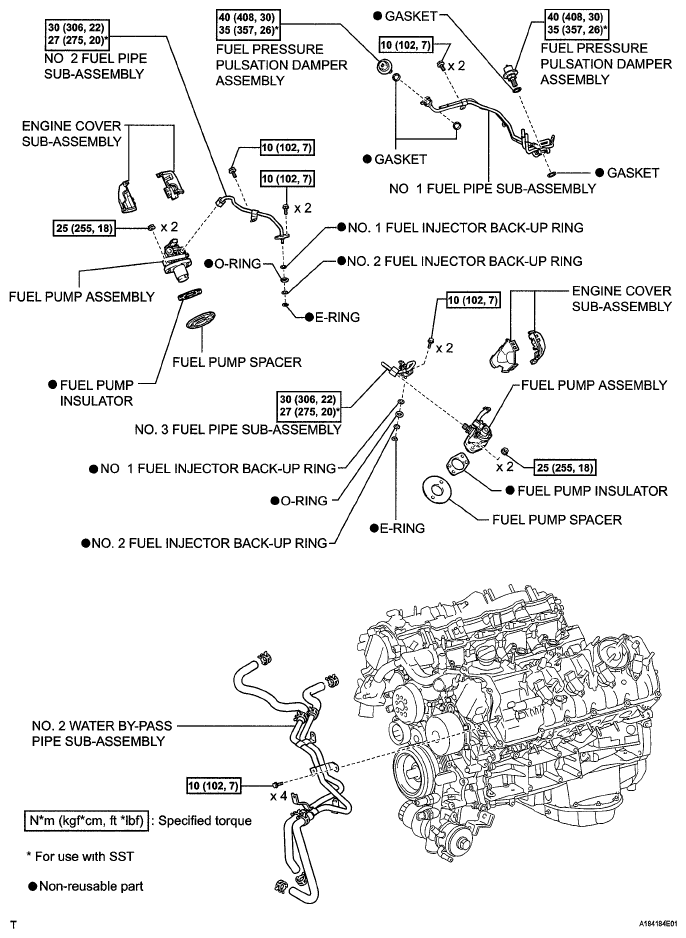

Fig 5: Engine Unit Components (5 Of 15) with Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

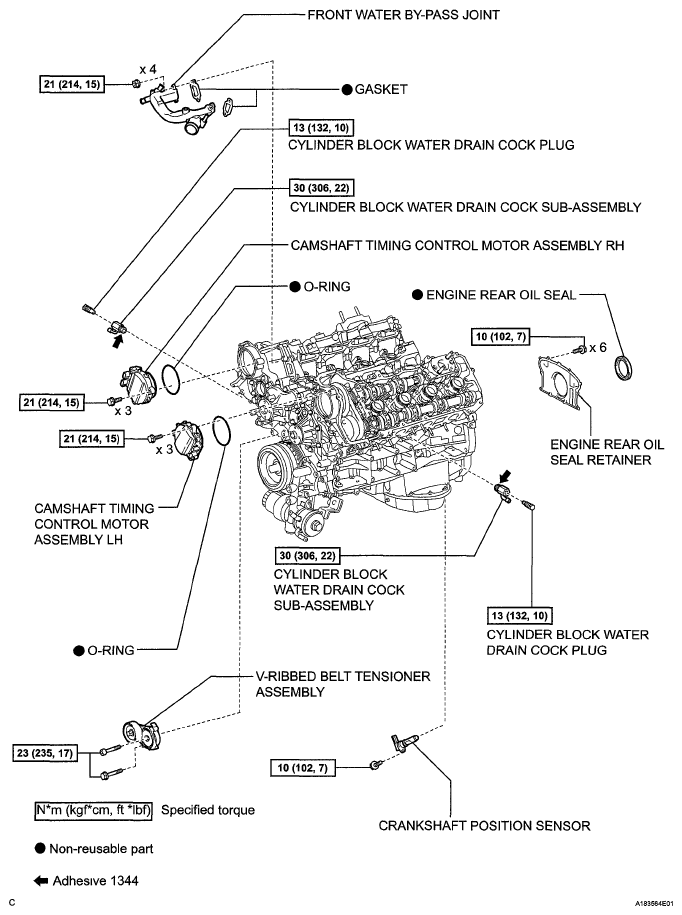

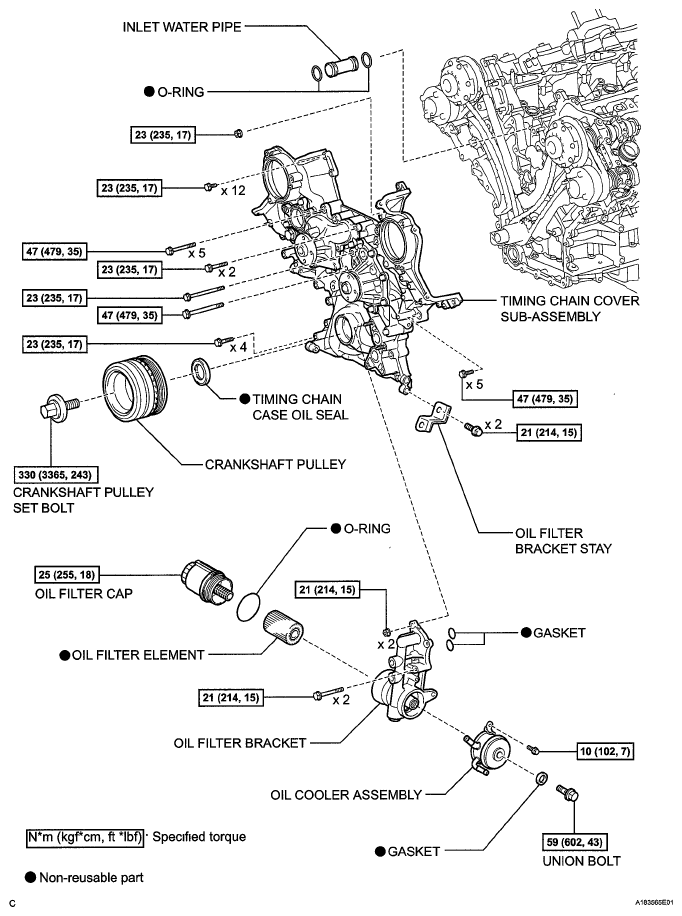

Fig 6: Engine Unit Components (6 Of 15) Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

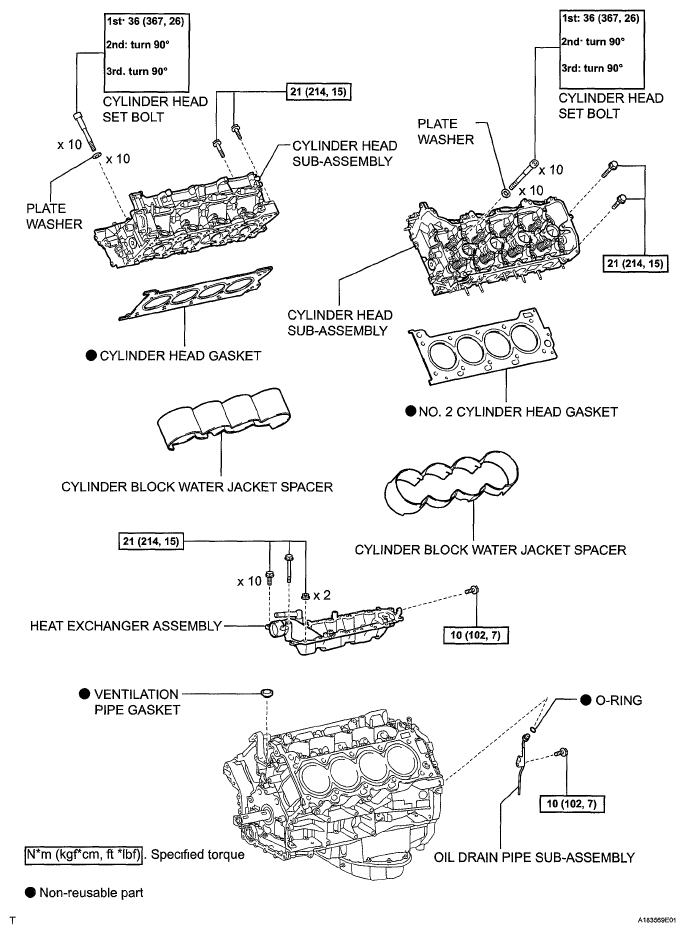

Fig 7: Engine Unit Components (7 Of 15) with Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

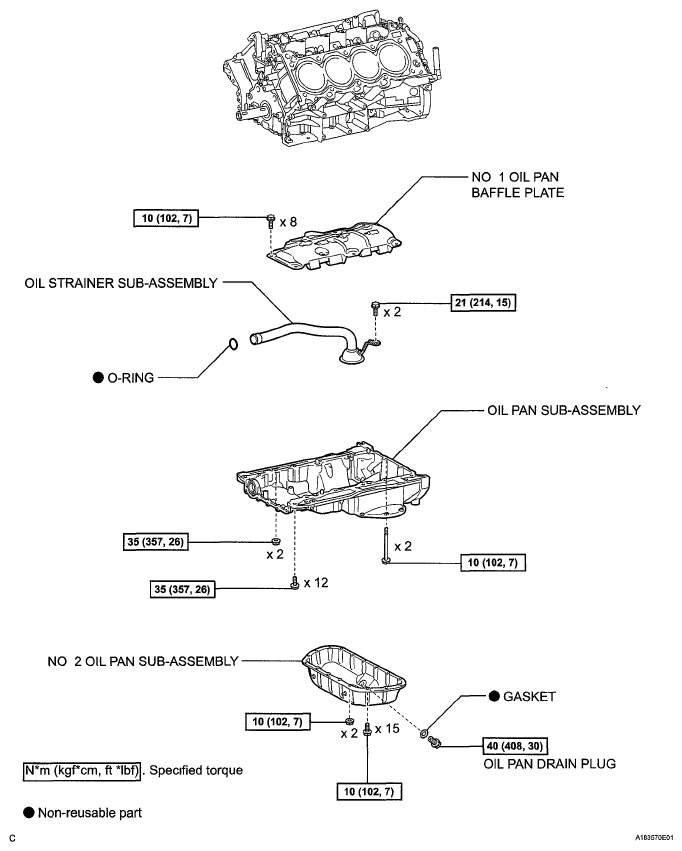

Fig 8: Engine Unit Components (8 Of 15) with Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Engine Unit Components (9 Of 15) with Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Engine Unit Components (10 Of 15) with Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Engine Unit Components (11 Of 15) with Torque Specifications

Fig 12: Engine Unit Components (12 Of 15) with Torque Specifications

Fig 13: Engine Unit Components (13 Of 15) with Torque Specifications

Fig 14: Engine Unit Components (14 Of 15) with Torque Specifications

Fig 15: Engine Unit Components (15 Of 15) with Torque Specifications
