Section 28 (Heating / Air Conditioning System): Compressor: Components

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.

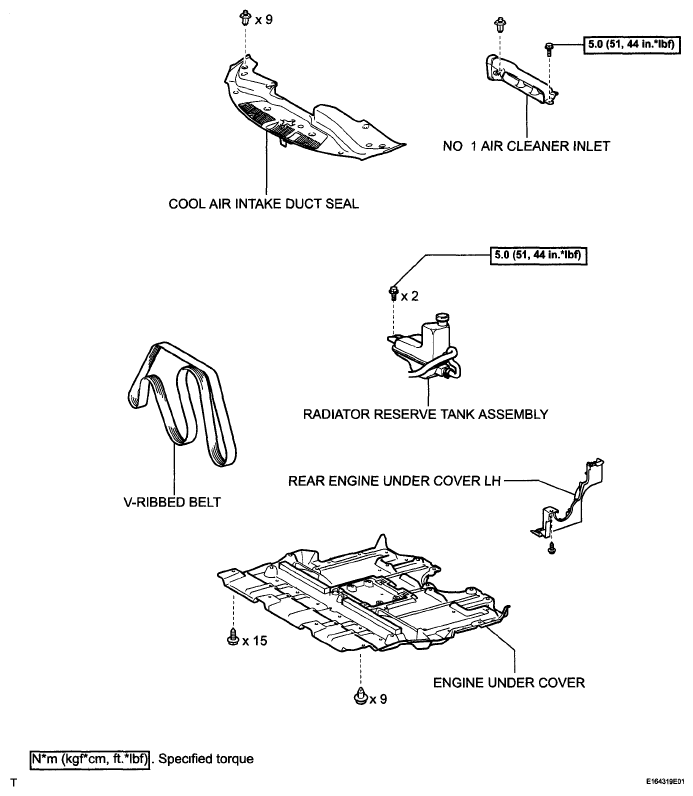

Fig 1: Identifying Compressor Replacement Components With Torque Specifications (1 Of 2)
G05755405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

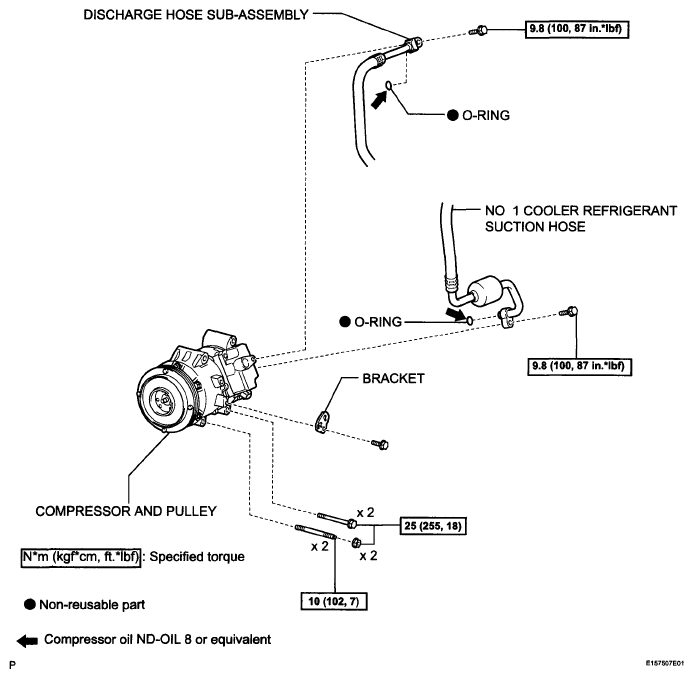

Fig 2: Compressor Replacement Components With Torque Specifications (2 Of 2)
G05755406Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
