Shift Solenoid Valve: Components

Fig 1: Identifying Shift Solenoid Valve Replacement Components With Torque Specification (1 Of 2)
G05824584Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

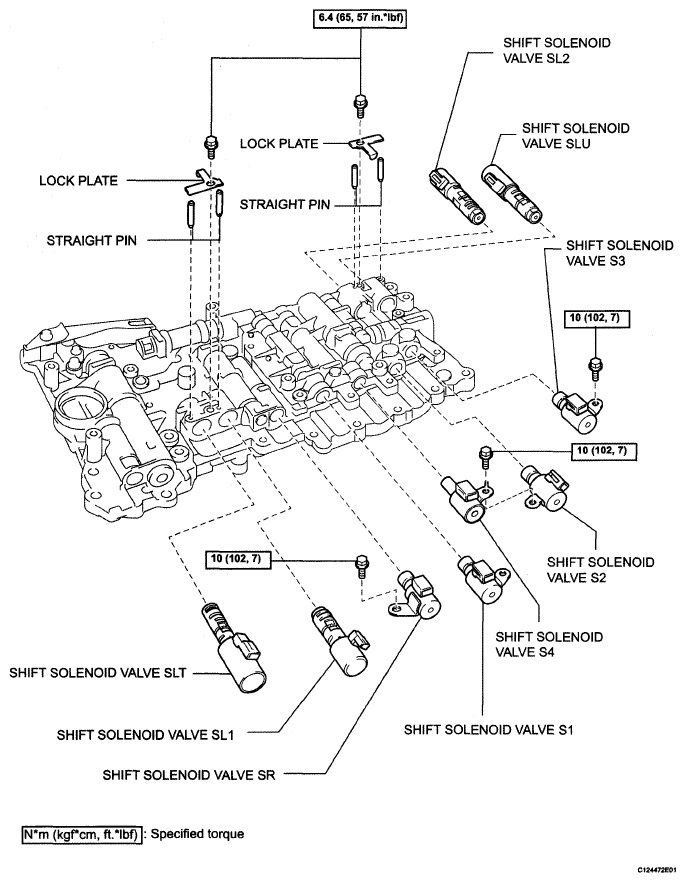

Fig 2: Shift Solenoid Valve Replacement Components With Torque Specifications (2 Of 2)
G05318198Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
