Yaw Rate And Acceleration Sensor: Components

Fig 1: Identifying Yaw Rate And Acceleration Sensor Replacement Components (1 Of 2)
G05752708Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

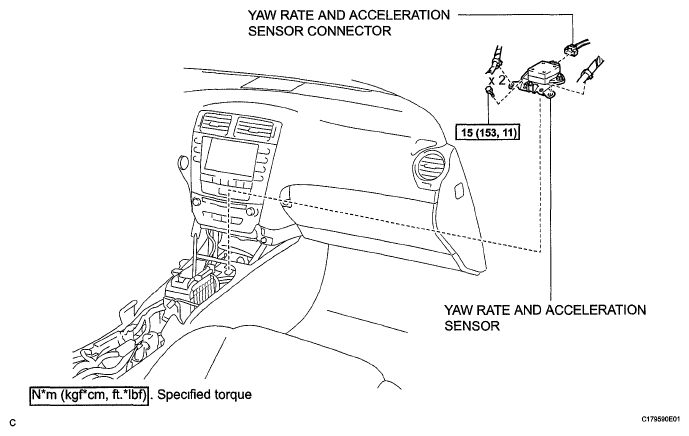

Fig 2: Yaw Rate And Acceleration Sensor Replacement Components (2 Of 2) With Torque Specification
G05752709Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
