Oil Level Sensor: Components

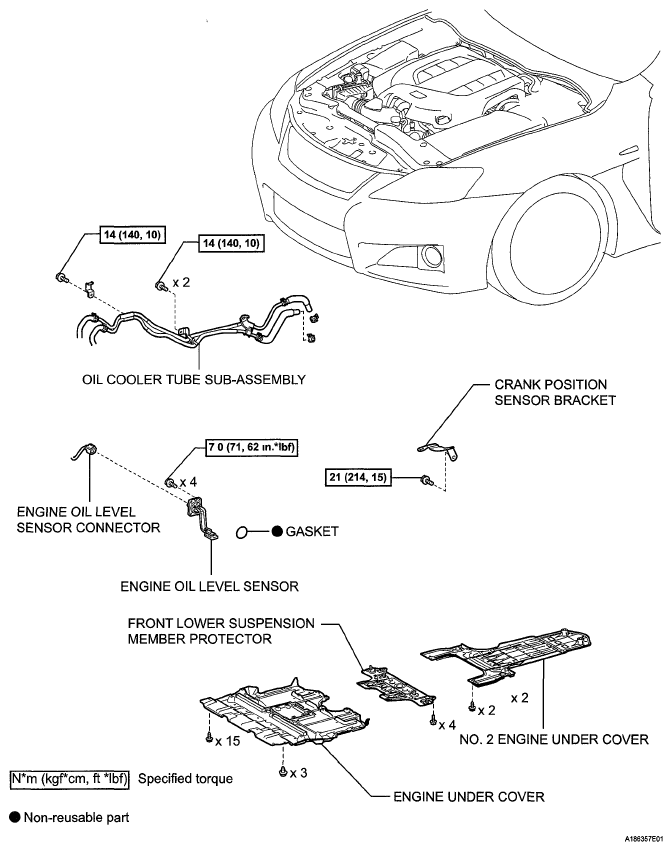

Fig 1: Oil Level Sensor Replacement Components With Torque Specifications
G05750408Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
