Engine Assembly: Components

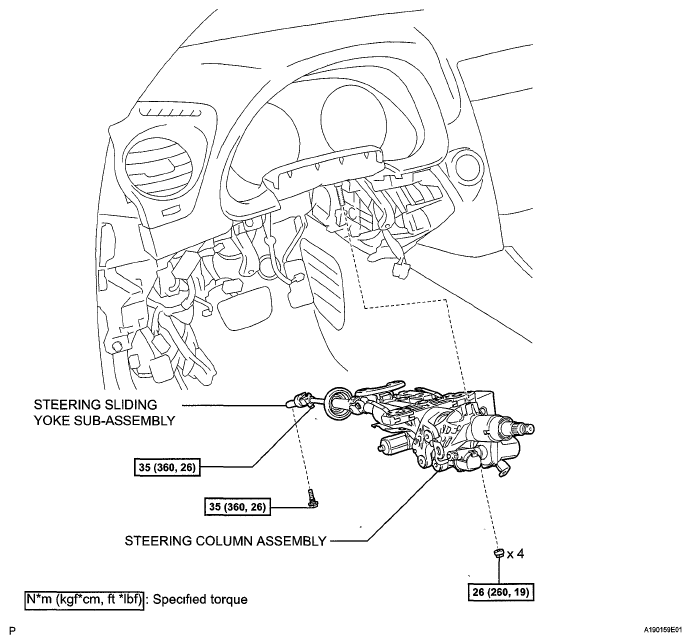

Fig 1: Identifying Engine Assembly Replacement Components (1 Of 10) with Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

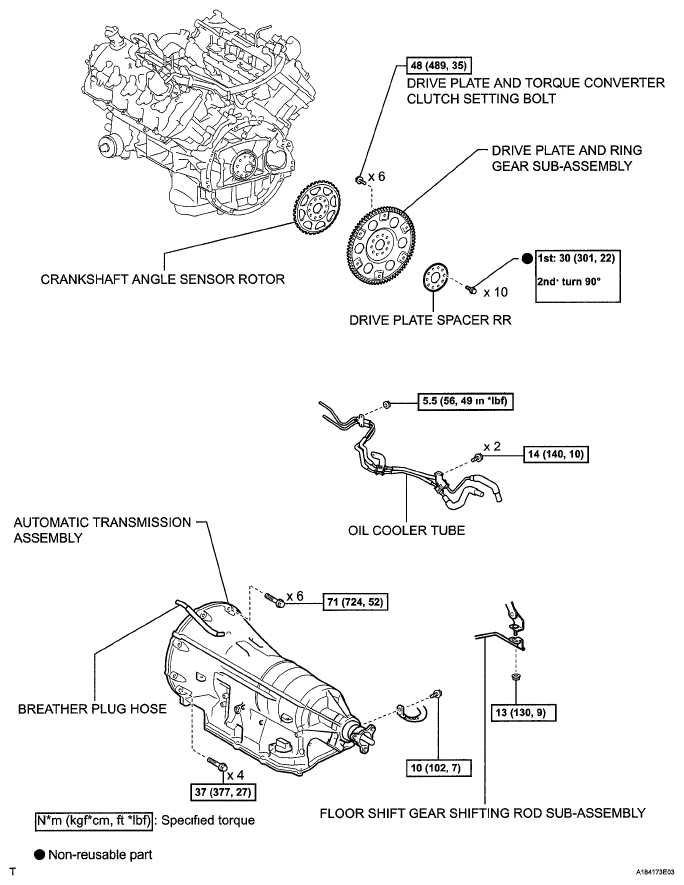

Fig 2: Identifying Engine Assembly Replacement Components (2 Of 10) with Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

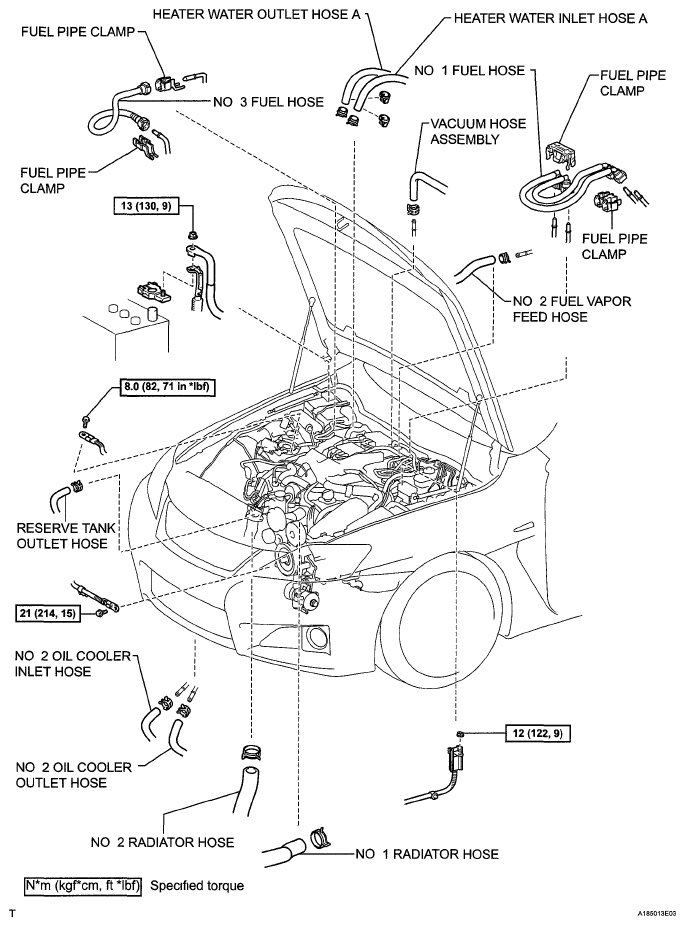

Fig 3: Identifying Engine Assembly Replacement Components (3 Of 10) with Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

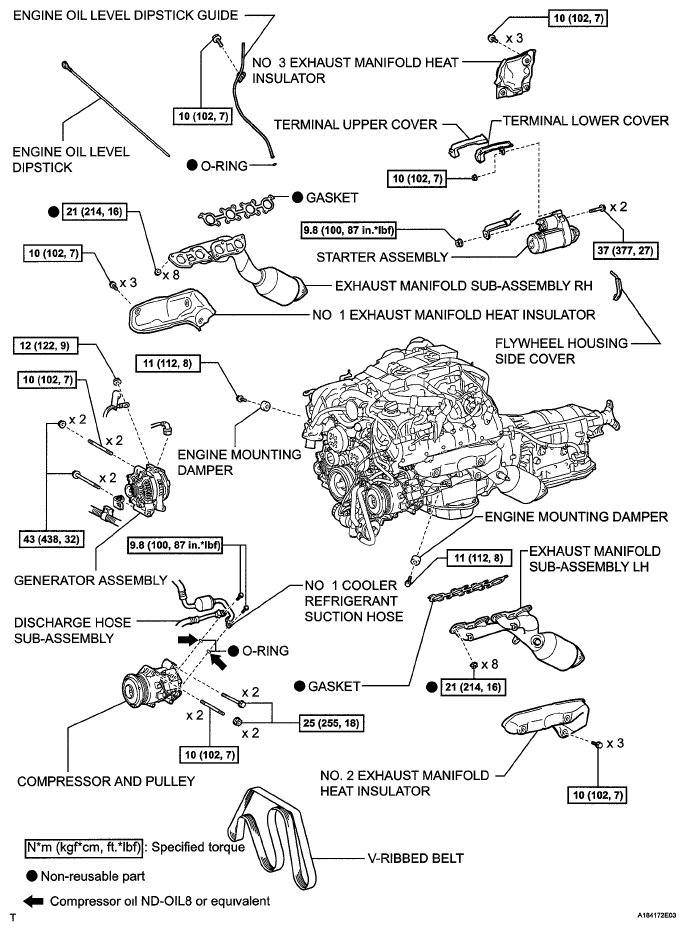

Fig 4: Identifying Engine Assembly Replacement Components (4 Of 10) with Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

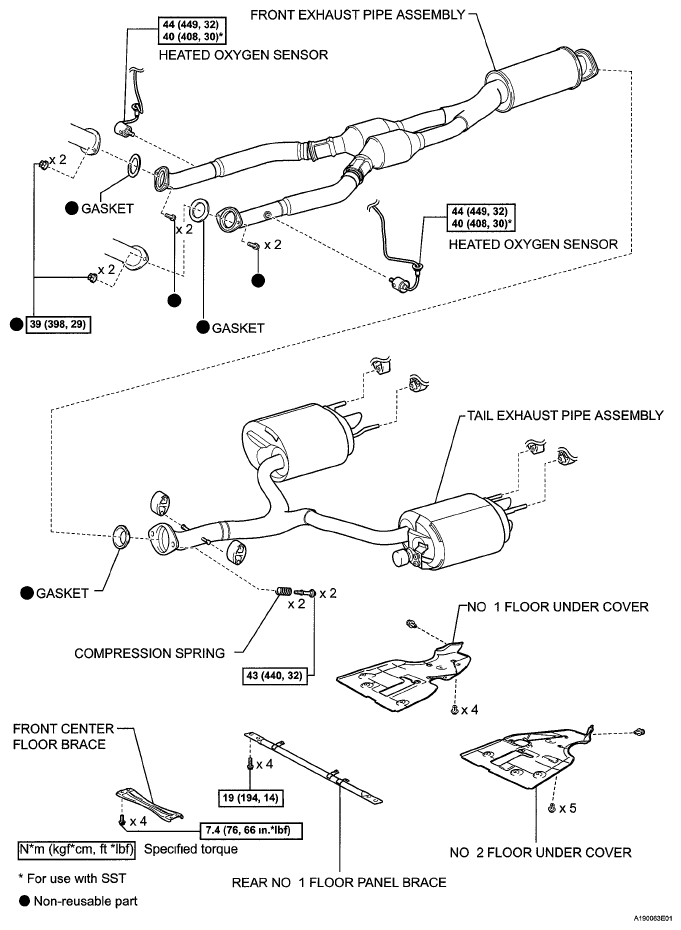

Fig 5: Identifying Engine Assembly Replacement Components (5 Of 10) with Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

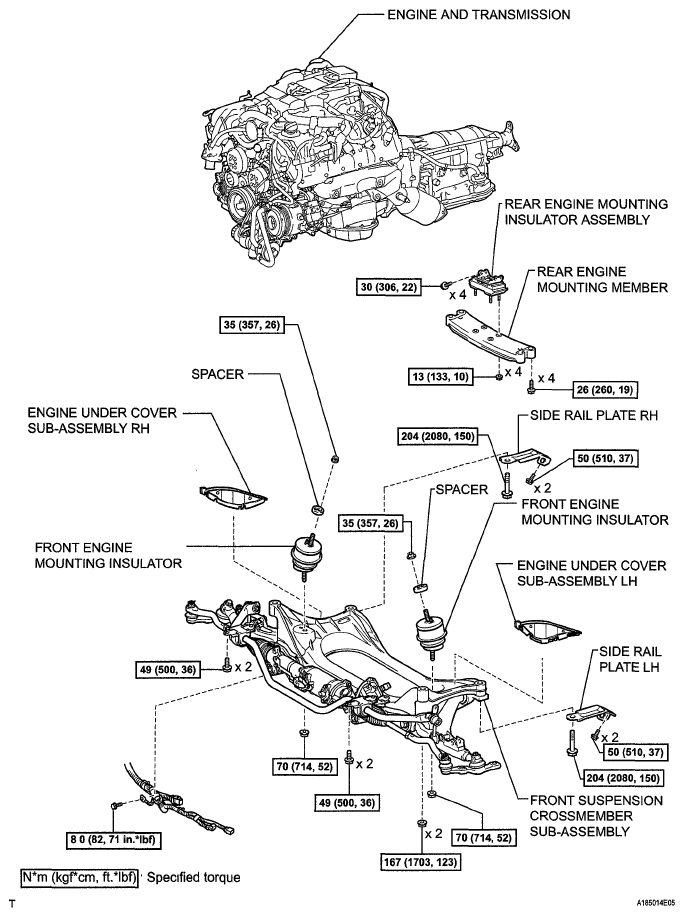

Fig 6: Identifying Engine Assembly Replacement Components (6 Of 10) with Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

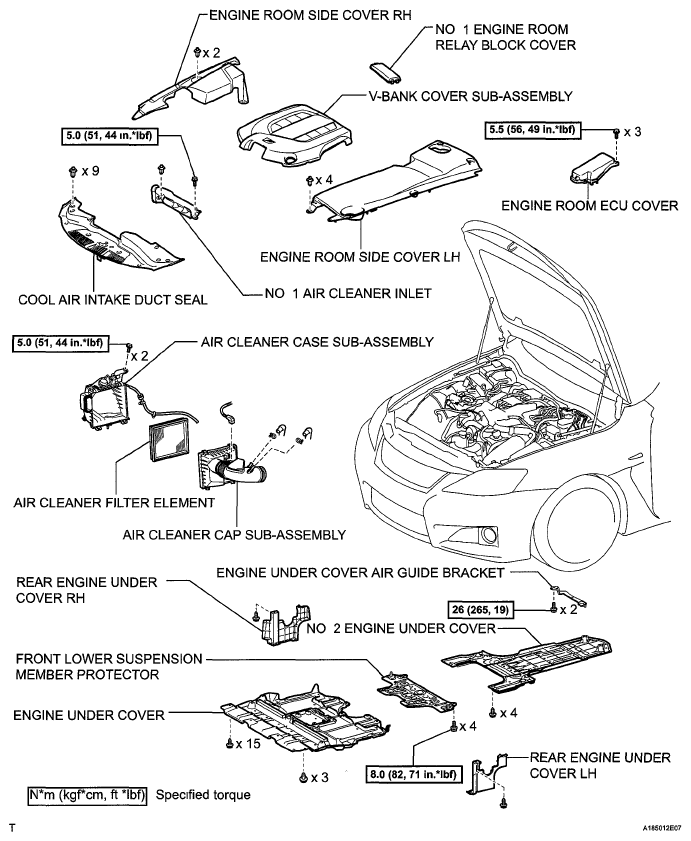

Fig 7: Identifying Engine Assembly Replacement Components (7 Of 10) with Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 8: Engine Assembly Replacement Components (8 Of 10) with Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 9: Engine Assembly Replacement Components (9 Of 10) with Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 10: Engine Assembly Replacement Components (10 Of 10) with Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
