Inspection Procedure
NOTE:
- When the distance control ECU is replaced with a new one, initialization must be performed (See INSTALLATION ).
- When the millimeter wave radar sensor is replaced with a new one, adjustment of the radar sensor beam axis must be performed (See ADJUSTMENT ).
- CHECK HARNESS AND CONNECTOR (DISTANCE CONTROL ECU - MILLIMETER WAVE RADAR SENSOR)
- Disconnect the distance control ECU and millimeter wave radar sensor connectors.
- Measure the resistance according to the value (s) in the table below
Standard Resistance

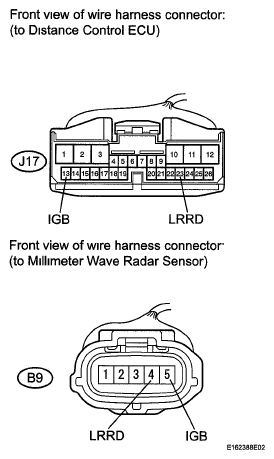

TESTER CONNECTION SPECIFIED CONDITION CHARTTester Connection Condition Specified Condition J17-23 (LRRD) - B9-4 (LRRD) Always Below 1 Ω J17-13 (IGB) - B9-5 (IGB) Always Below 1 Ω J17-23 (LRRD) - Body ground Always 10 kΩ or higher J17-13 (IGB) - Body ground Always 10 kΩ or higher
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: Go to next step
- REPLACE DISTANCE CONTROL ECU
- Replace the distance control ECU (See DISTANCE CONTROL ECU ).
- Initialize the distance control ECU (See INSTALLATION ).
- CHECK DTC
- Clear the DTC (See DTC CHECK / CLEAR ).
- Turn the cruise control main switch on
- Drive the vehicle at the require speed (45 km/h (27 mph) or higher)
- Check if the same DTC is recorded (See DTC CHECK / CLEAR
).
Result
RESULT REFERENCEResult Proceed to DTC U1102 is not output A DTC U1102 is output B
B: REPLACE MILLIMETER WAVE RADAR SENSOR (See MILLIMETER WAVE RADAR SENSOR )
A: END
