Millimeter Wave Radar Sensor Power Source Circuit: Wiring Diagram

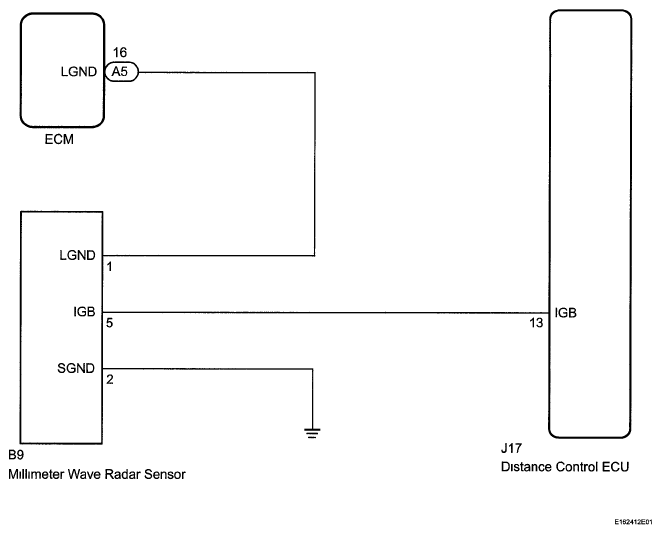

Fig 1: Millimeter Wave Radar Sensor Power Source - Wiring Diagram
G05750632Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
