Operation Check

INPUT SIGNAL CHECK
1. Connect the Techstream to the DLC3
2. Check the cruise control main switch using the Data List function in the Techstream (ON-OFF, CANCEL, - (COAST)/SET, + (ACCEL)/RES (RESUME), and MODE)

  Fig 1: Identifying Cruise Control Main Switch Operating Directions
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT MODE SWITCH
1. Turn the engine switch on (IG)

  Fig 2: Identifying Cruise Control Main Switch Operating Directions
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Turn the cruise control main switch on Then push the main switch to MODE for 1 second or more to change to the constant speed control mode. Check that "NORM" is indicated on the display
  NOTE: Do not push any other switches before pushing the main switch to MODE. If another switch is pushed, turn the main switch off and repeat the procedure above.

  HINT.

  If a malfunction is detected, turn the engine switch off and repeat the procedure above

  Fig 3: Identifying NORM Indication
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT STEERING PAD SWITCH ASSEMBLY
1. Turn the engine switch on (IG)
2. Turn the cruise control main switch on
3. Turn on the distance control switch of the steering pad switch
4. Check that the indication of the vehicle-to-vehicle distance, which is shown on the multi-information display on the combination meter, changes from long to middle to short in that order.

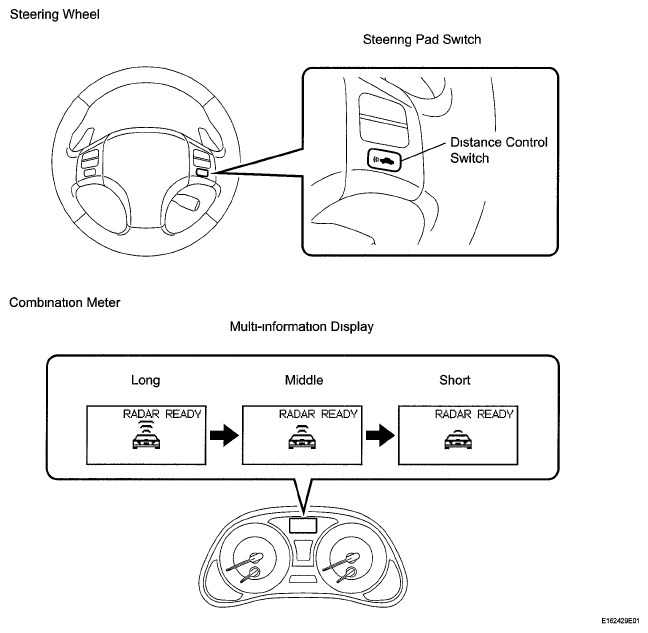

  Fig 4: Identifying Distance Control Switch
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT

  The indication is automatically set to long each time the engine is started
