Front Door Speaker: Components

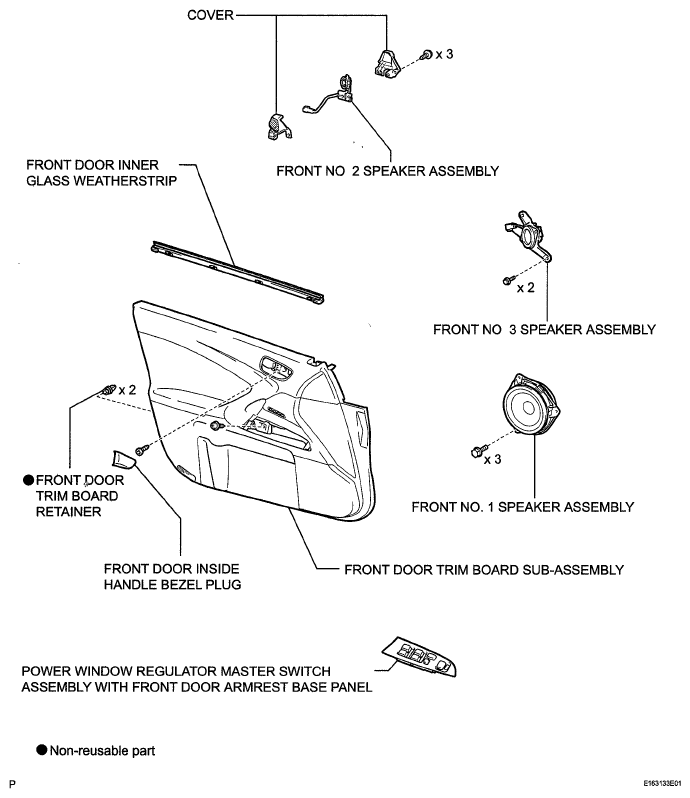

Fig 1: Identifying Front Door Speaker Components

G05753434

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
