TC and CG Terminal Circuit: Wiring Diagram

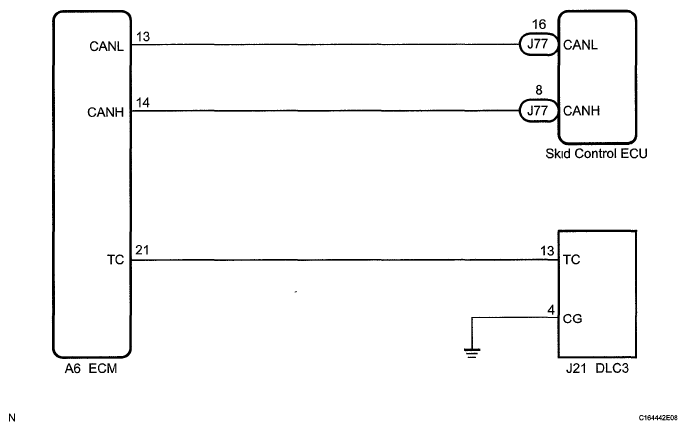

Fig 1: TC And CG Terminal Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT.

When the warning lights continue to blink, a ground short in the wiring of terminal TC of the DLC3 or an internal ground short in one or more ECUs is suspected
