Scavenging Pump: Components

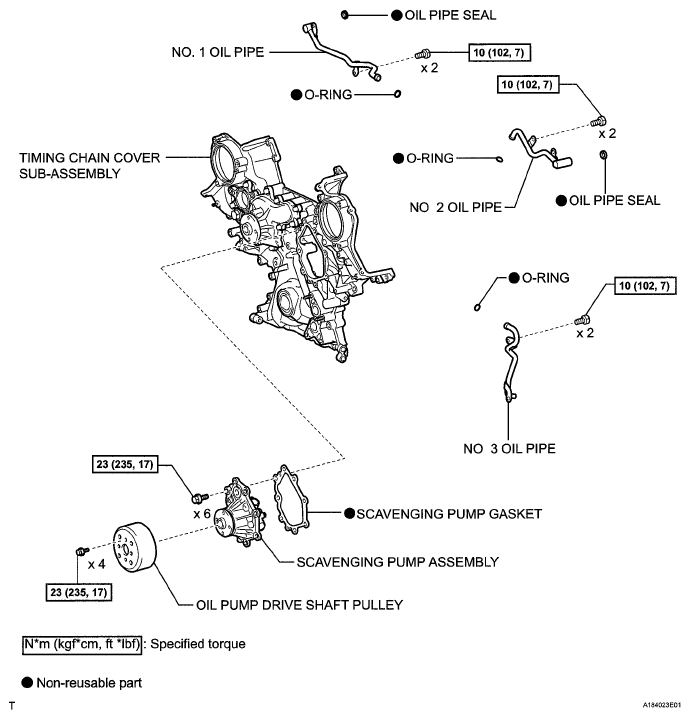

Fig 1: Scavenging Pump Replacement Components With Torque Specifications
G05750476Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
