FUEL PUMP (for High Pressure): Components

Fig 1: Fuel Pressure Pulsation Damper Replacement Components - For Direct Injection (2 Of 2) With Torque Specifications
G05750016Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Fuel Pump Replacement Components With Torque Specifications (2 Of 3)
G05750086Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

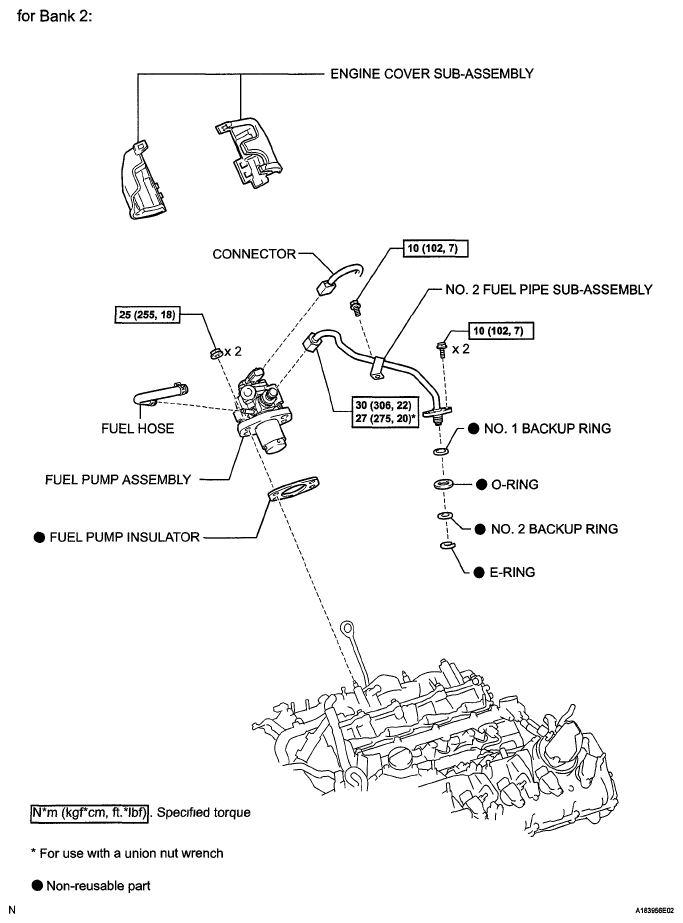

Fig 3: Fuel Pump Replacement Components With Torque Specifications (3 Of 3)
G05750087Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
