DTC P0705 Transmission Range Sensor Circuit Malfunction (PRNDL Input): Wiring Diagram

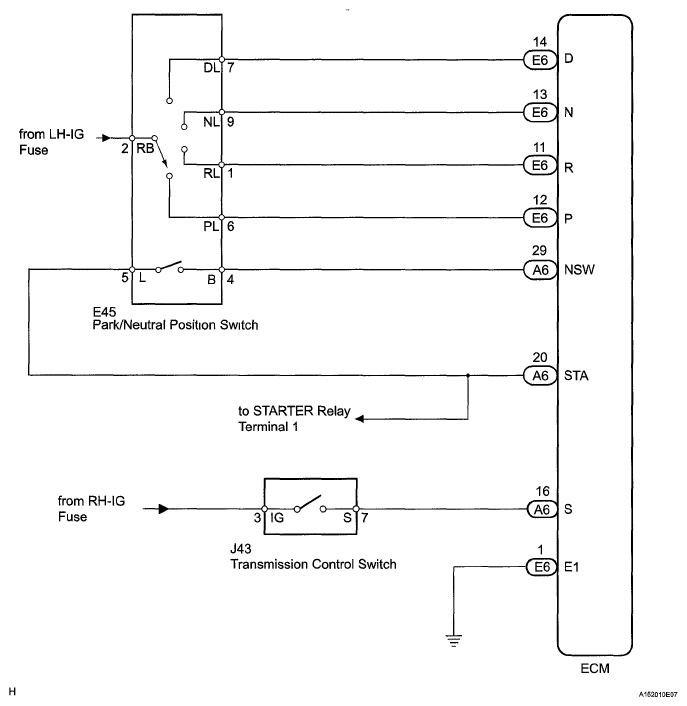

Fig 1: Transmission Range Sensor Circuit Malfunction - Wiring Diagram
G05751641Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
