Center Airbag Sensor Assembly: Components

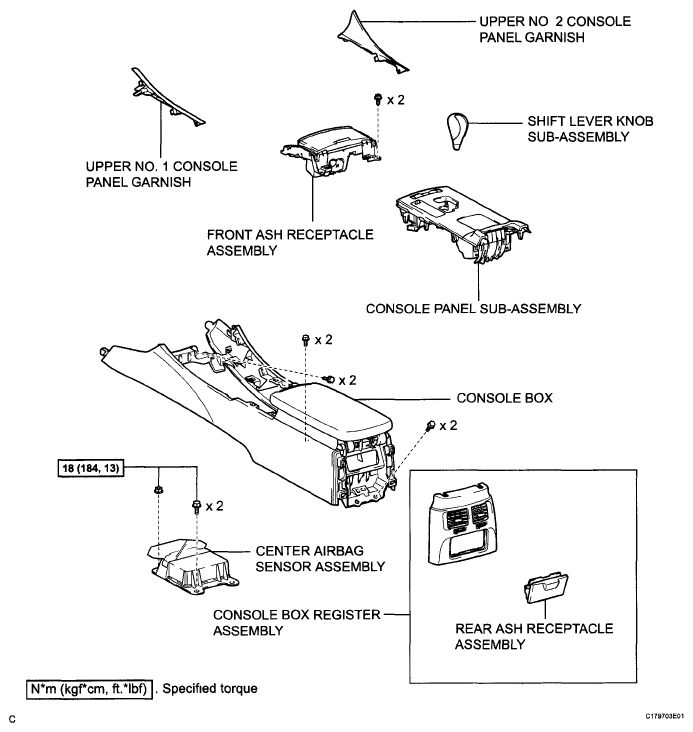

Fig 1: Center Airbag Sensor Assembly Replacement Components With Torque Specifications
G05757232Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
