Inspection Procedure

1. When the master switch assembly's door control switch is operated, check that the locked doors unlock.

   Result

   RESULT REFERENCE



   Result	Proceed to
   Door locks operate normally	OK
   Door locks do not operate normally	NG

NG: GO TO POWER DOOR LOCK CONTROL SYSTEM

OK: Go to next step

1. Using the Techstream, read the Data List.

   Passenger Door (Front door ECU LH)

   MEASUREMENT ITEM/DISPLAY CHART



   Tester Display	Measurement Item/Display	Normal Condition	Diagnostic Note
   Outside Handle Trigger SW	Front passenger side door outside handle lock switch / ON or OFF	ON: Front passenger side door outside handle lock switch is pushed OFF: Front passenger side door outside handle lock switch is not pushed	-

   OK: On the screen, item changes between ON and OFF according to above chart.

NG: Go to step  4

OK: Go to next step

1. Replace the front door ECU RH with a new one or normally functioning one (see INSTALLATION ).
2. Check that the entry function operates normally.

   OK: Operates normally

NG: REPLACE CERTIFICATION ECU

OK: END (FRONT DOOR ECU RH IS DEFECTIVE)

1. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   STANDARD RESISTANCE



   Tester Connection	Switch Condition	Specified Condition
   a2-3 (TRG+) - a2-1 (TRG-)	ON	Below 1 Ω
   a2-3 (TRG+) - a2-1 (TRG-)	OFF	10 kΩ or higher

NG: REPLACE FRONT DOOR OUTSIDE HANDLE RH  (See INSTALLATION )

Fig 1: Identifying a2 Handle Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK: Go to next step

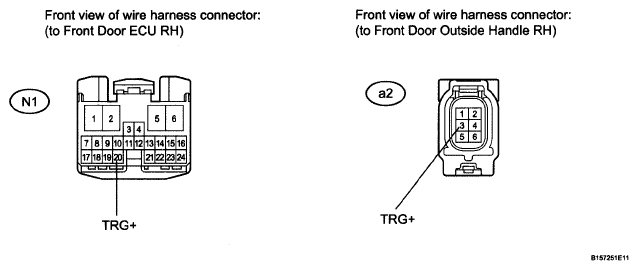

Fig 2: Identifying a2 Handle Connector And N1 ECU Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the a2 handle connector.
2. Disconnect the N1 ECU connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   STANDARD RESISTANCE



   Tester Connection	Condition	Specified Condition
   a2-3 (TRG+) - N1-20 (TRG+)	Always	Below 1 Ω
   a2-3 (TRG+) - Body ground	Always	10 kΩ or higher

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

Fig 3: Identifying a1 Oscillator Connector And a2 Handle Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the a1 oscillator connector.
2. Disconnect the a2 handle connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   STANDARD RESISTANCE



   Tester Connection	Condition	Specified Condition
   a2-1 (TRG-) - a1-9 (TRG-)	Always	Below 1 Ω
   a2-1 (TRG-) - Body ground	Always	10 kΩ or higher

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Replace the door electrical key oscillator with a new one or normally functioning one (see INSTALLATION ).
2. Check that the entry function operates normally.

   OK: Operates normally

NG: Go to step 8

OK: END (DOOR ELECTRICAL KEY OSCILLATOR IS DEFECTIVE)

1. Replace the front door ECU RH with a new one or normally functioning one (see INSTALLATION ).
2. Check that the entry function operates normally.

   OK: Operates normally

NG: REPLACE CERTIFICATION ECU

OK: END (FRONT DOOR ECU RH IS DEFECTIVE)
