Inspection Procedure

1. When the master switch assembly's door control switch is operated, check that the locked doors unlock.

   Result

   RESULT REFERENCE



   Result	Proceed to
   Door locks operate normally	OK
   Door locks do not operate normally	NG

NG: GO TO POWER DOOR LOCK CONTROL SYSTEM

OK: Go to next step

1. Using the Techstream, read the Data List.

   Smart Access (Certification ECU)

   MEASUREMENT ITEM/DISPLAY CHART



   Tester Display	Measurement Item/Display	Normal Condition
   Auto Entry Cancel SW	Entry function cancel / ON or OFF	Mode status is displayed

   Result

   RESULT REFERENCE



   Result	Proceed to
   Entry function is OFF	A
   Entry function is ON	B

B: PERFORM CANCELLATION OF ENTRY KEY CANCEL FUNCTION  (See CUSTOMIZE PARAMETERS  )

A: Go to next step

1. Remove the battery of the electrical key transmitter (see REPLACEMENT  ).
2. Touch the LEXUS mark of the key or card key to the engine switch.
3. Check that the engine switch can be turned on (IG).

   Result

   RESULT REFERENCE



   Result	Proceed to
   Engine switch can be turned on (IG)	A
   Engine switch cannot be turned on (IG)	B

   Fig 1: Checking Smart Access System With Push-Button Start

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

B: GO TO SMART ACCESS SYSTEM WITH PUSH-BUTTON START  (See SMART ACCESS SYSTEM WITH PUSH-BUTTON START )

A: Go to next step

1. Install the battery to the electrical key transmitter (see REPLACEMENT  ).
2. Bring the electrical key transmitter near the indoor electrical key oscillator (in center console), and perform an engine start check.
   NOTE: If the key is brought within 0.2 m (0.6 ft.) of the center console, communication is not possible.
3. Bring the electrical key transmitter near the indoor electrical key oscillator (in rear seat cushion), and perform an engine start check.
   NOTE: If the key is brought within 0.2 m (0.6 ft.) of the rear seat cushion, communication is not possible.

   HINT:

   • When the electrical key transmitter is brought near the indoor electrical key oscillator, the possibility of wave interference decreases, and it can be determined if wave interference is causing the problem symptom.
   • If the inspection result is that the operation check is normal, the possibility of wave interference is high. Also, added vehicle components may cause wave interference. If installed, remove them and perform the operation check.

   Result

   RESULT REFERENCE



   Result	Proceed to
   Both operation checks fail	A
   Operation check is normal	B

B: AFFECTED BY WAVE INTERFERENCE

A: Go to next step

1. Diagnostic mode inspection (front inside oscillator)
   1. Connect the Techstream to the DLC3.
   2. Turn the engine switch on (IG).
   3. Turn the the Techstream on.
   4. Enter the following menus: Body Electrical / Smart Access / Smart Communication Check /Overhead + Front Room.
   5. When the electrical key transmitter is placed on the driver seat or front passenger seat cushion, check that the wireless door lock buzzer sounds.
      Fig 2: Inspecting Front Inside Oscillator

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Diagnostic mode inspection (rear inside oscillator)
   1. Connect the Techstream to the DLC3.
   2. Turn the engine switch on (IG).
   3. Turn the the Techstream on.
   4. Enter the following menus: Body Electrical / Smart Access / Smart Communication Check /Overhead + Rear Room.
   5. When the electrical key transmitter is placed on the rear seat cushion, check that the wireless door lock buzzer sounds.

      HINT:

      If the buzzer sounds, it can be determined that the vehicle interior transmitters are operating normally.

      Fig 3: Inspecting Rear Inside Oscillator

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Result

      RESULT REFERENCE



      Result	Proceed to
      Front and rear operation check is normal	A
      Front and rear operation checks fail	B

A: REPLACE CERTIFICATION ECU

B: Go to next step

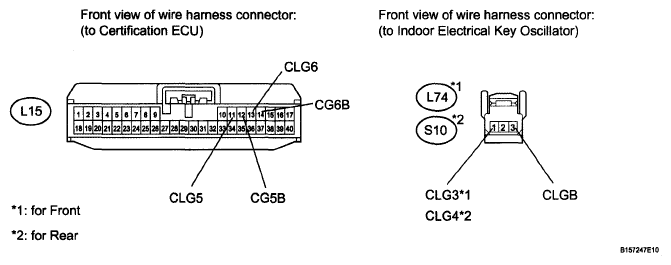

Fig 4: Identifying L74, S10 Oscillator Connectors And L15 ECU Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the L74 and S10 oscillator connectors.
2. Disconnect the L15 ECU connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance for Front

   STANDARD RESISTANCE



   Tester Connection	Condition	Specified Condition
   L74-1 (CLG3) - L15-11 (CLG5)	Always	Below 1 Ω
   L74-3 (CLGB) - L15-12 (CG5B)	Always	Below 1 Ω
   L74-1 (CLG3) - Body ground	Always	10 kΩ or higher
   L74-3 (CLGB) - Body ground	Always	10 kΩ or higher

   for Rear

   STANDARD RESISTANCE



   Tester Connection	Condition	Specified Condition
   S10-1 (CLG4) - L15-13 (CLG6)	Always	Below 1 Ω
   S10-3 (CLGB) - L15-14 (CG6B)	Always	Below 1 Ω
   S10-1 (CLG4) - Body ground	Always	10 kΩ or higher
   S10-3 (CLGB) - Body ground	Always	10 kΩ or higher

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Replace the indoor electrical key oscillator with a new one or normally functioning one.
2. Check that the entry function operates normally.

   OK: Operates normally

NG: Go to step 8

OK: END (INDOOR ELECTRICAL KEY OSCILLATOR IS DEFECTIVE)

1. Replace the electrical key transmitter with a new one and perform the registration procedure (see REGISTRATION ).

1. Check the operation of the entry lock function.

   OK: Operates normally

NG: REPLACE CERTIFICATION ECU

OK: END (KEY IS DEFECTIVE)
