Front Console Box: Components

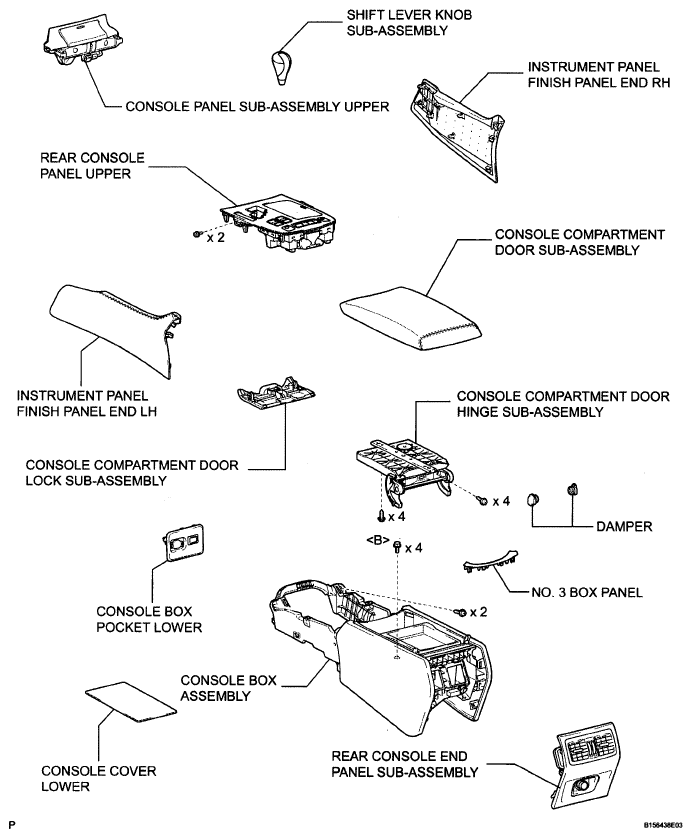

Fig 1: Identifying Front Console Box Replacement Components
G05857599Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
