High Pitched Horn: Components

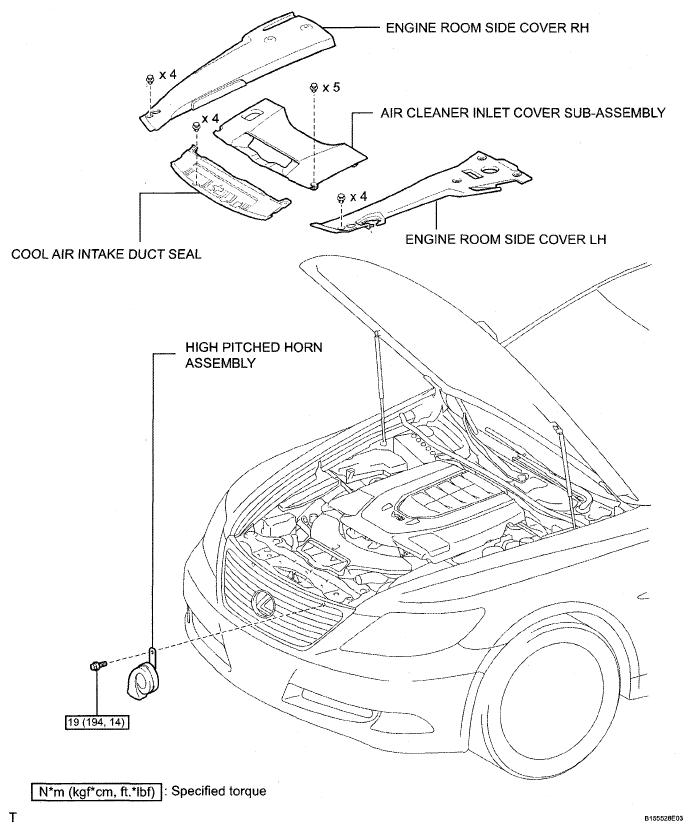

Fig 1: High Pitched Horn Replacement Components With Torque Specifications
G04945767Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
