System Diagram

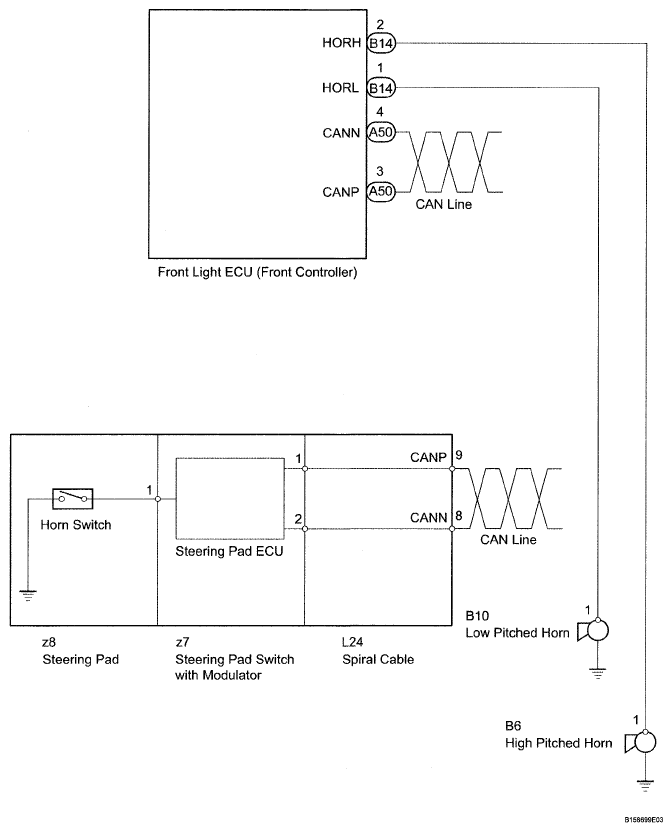

Fig 1: Horn System Diagram
G04945753Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Communication table

COMMUNICATION CHART

Sender Receiver Signal Line
Steering pad switch with modulator (Steering pad ECU) Front light ECU (Front controller) Horn signal CAN
