Identification Of Noise Source

1. Radio broadcasts use the radio frequency bands shown in the table below.

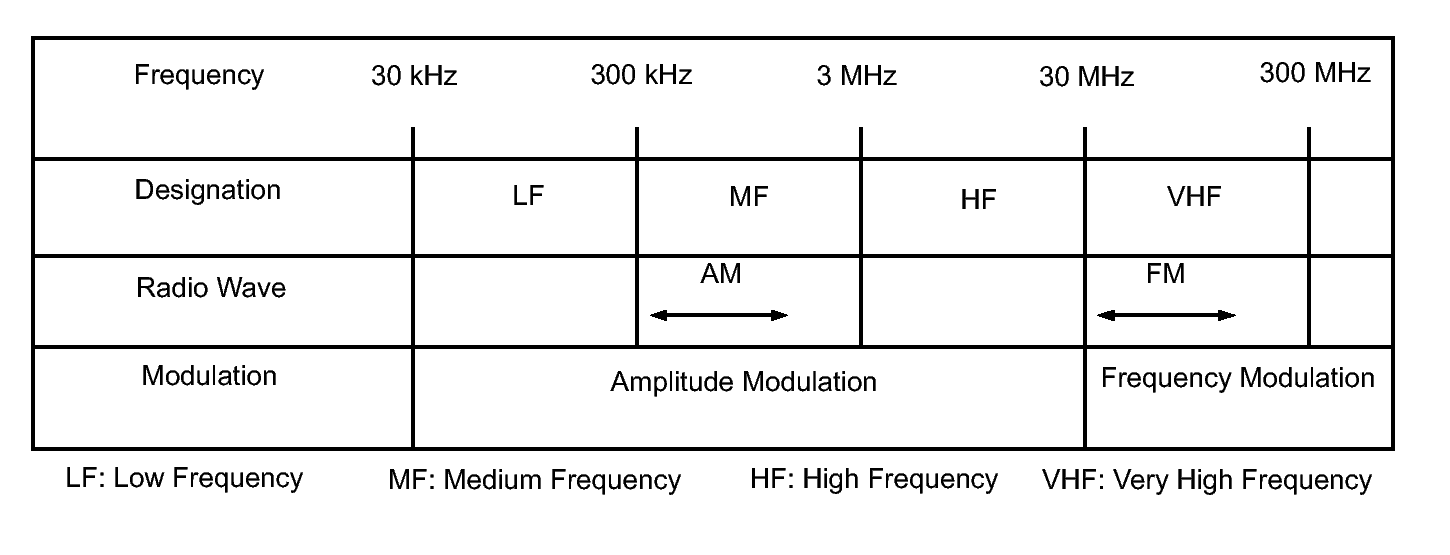

   Fig 1: View Of Radio Frequency Band Chart

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

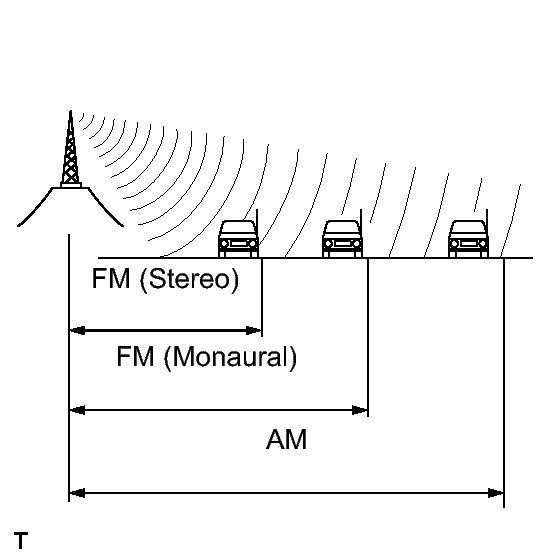

Fig 2: Identifying Service Areas Of AM And FM Broadcasts

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. The service areas of AM and FM broadcasts are vastly different. Sometimes an AM broadcast can be received very clearly but an FM stereo cannot. FM stereo has the smallest service area, and is prone to pick up static and other types of interference such as noise.

HINT:

In addition to static, other problems such as "phasing", "multipath" and "fade out" exist. These problems are not caused by electrical noise, but by the radio signal propagation method itself.

1. Phasing

   AM broadcasts are susceptible to electrical interference and another kind of interference called phasing. Occurring only at night, phasing is the interference created when a vehicle receives 2 radio wave signals from the same transmitter. One signal is reflected off the ionosphere and the other signal is received directly from the transmitter.

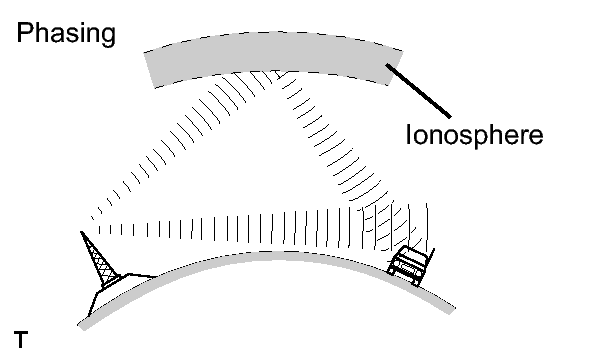

   Fig 3: Identifying Radio Phasing

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Multipath

   Multipath is a type of interference created when a vehicle receives 2 radio wave signals from the same transmitter. One signal is reflected off buildings or mountains and the other signal is received directly from the transmitter.

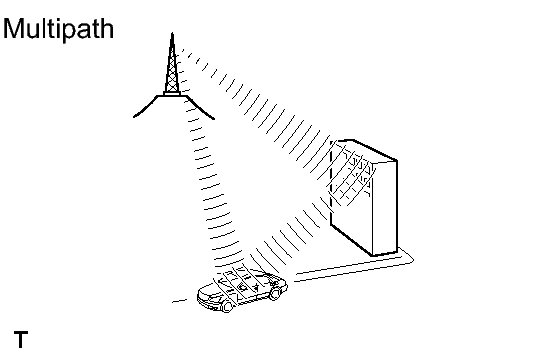

   Fig 4: Identifying Radio Multipath

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Fade out

   Fade out is caused by objects (buildings, mountains and other such large obstacles) that deflect away part of a signal, resulting in a weaker signal when the object is between the transmitter and vehicle. High frequency radio waves, such as FM broadcasts, are easily deflected by obstructions. Low frequency radio waves, such as AM broadcasts, are less likely to deflect.

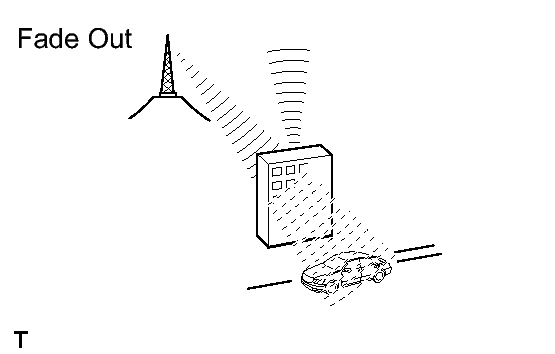

   Fig 5: Identifying Radio Fade Out

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Technicians must have a clear understanding about each customer's noise complaint. Use the following table to diagnose noise problems.
