Heated Steering Wheel Controller: Components

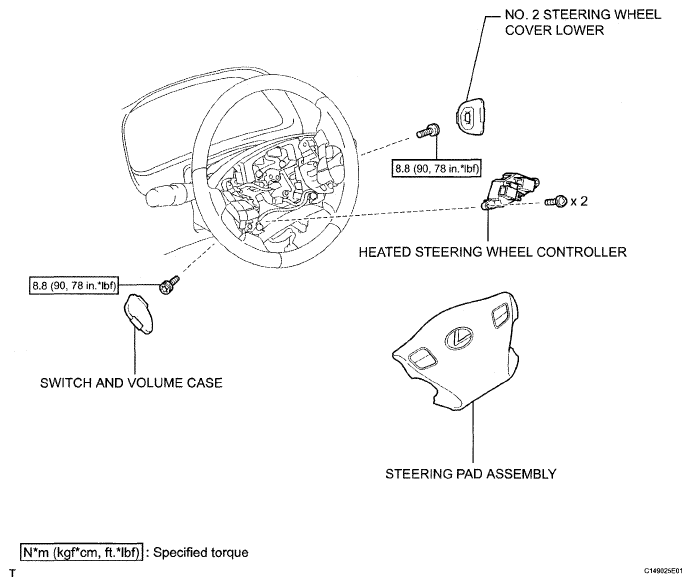

Fig 1: Heated Steering Wheel Controller Replacement Components With Torque Specifications
G04950321Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
