Steering Wheel: Components

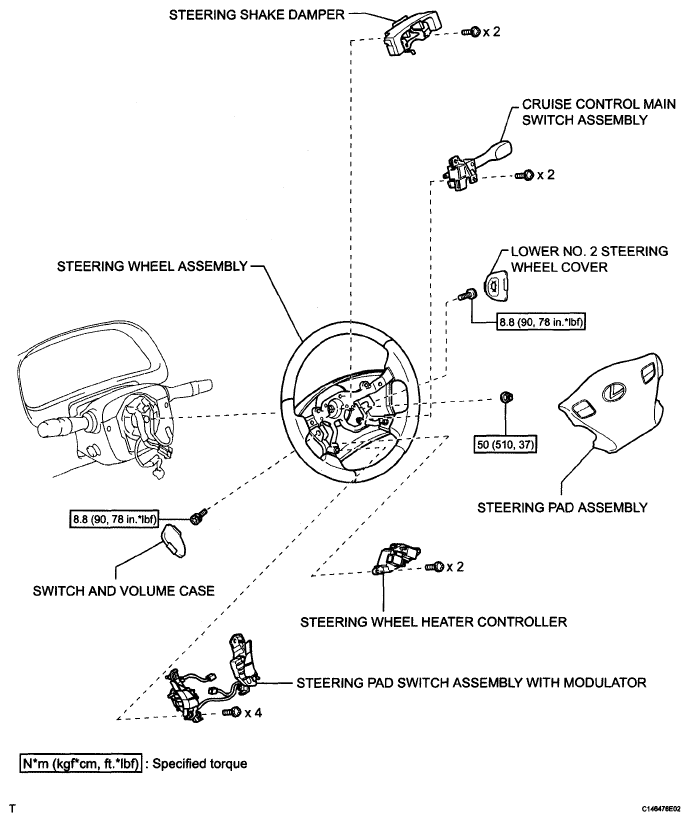

Fig 1: Steering Wheel Replacement Components With Torque Specifications
G05851546Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
