Rear Speed Sensor: Components

Fig 1: Identifying Rear Speed Sensor Components (1 Of 4)
G05774065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

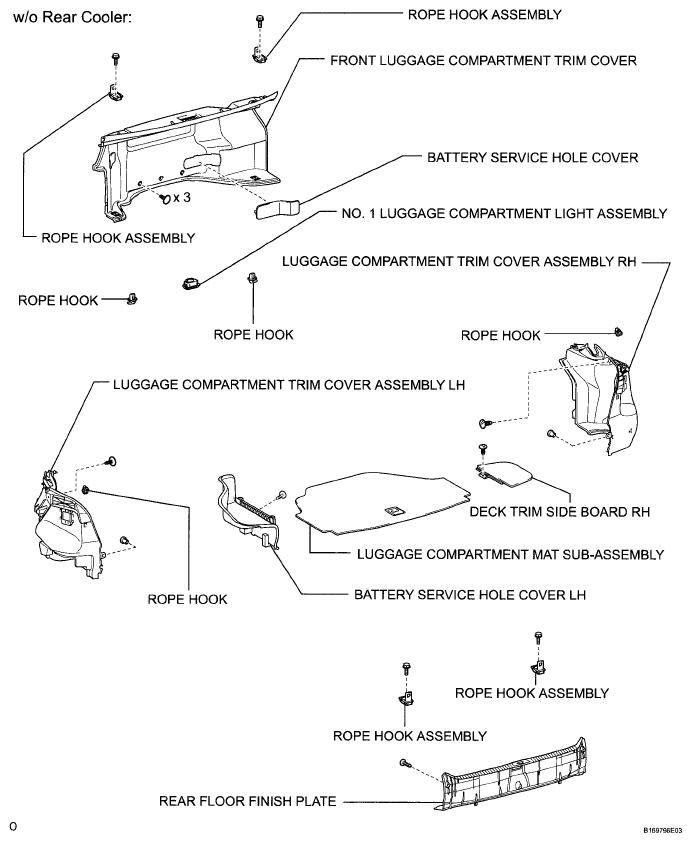

Fig 2: Identifying Rear Speed Sensor Components (2 Of 4)
G05786489Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

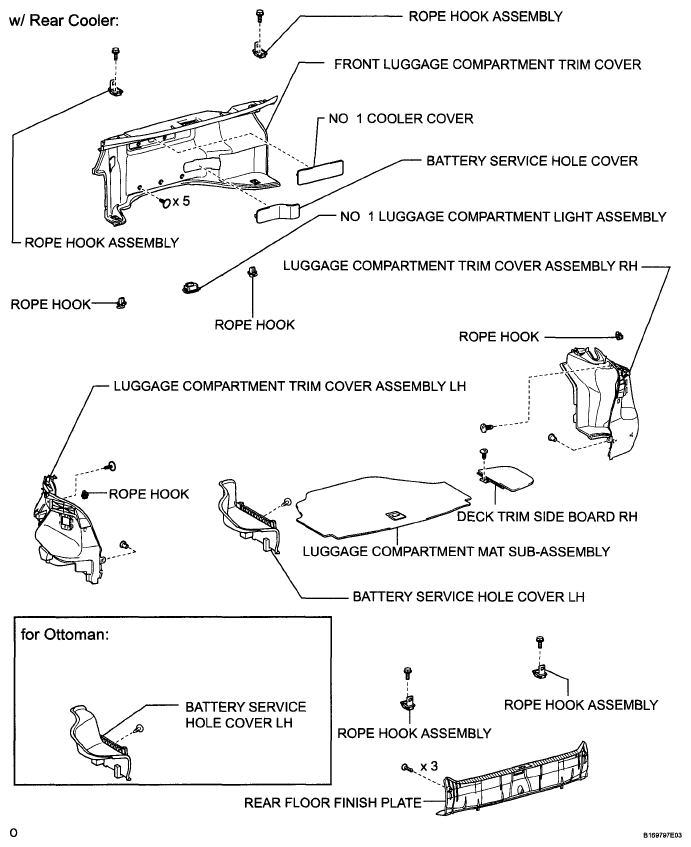

Fig 3: Identifying Rear Speed Sensor Components (3 Of 4)
G05786490Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

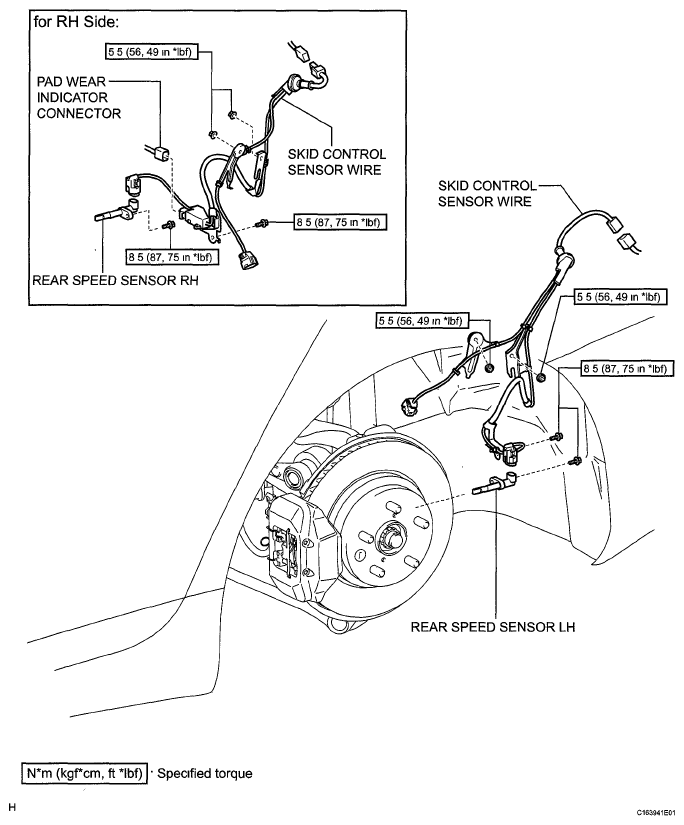

Fig 4: Rear Speed Sensor Replacement Components With Torque Specifications (4 Of 4)
G05774131Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
