Rear Sunshade Assembly: Components

Fig 1: Identifying Rear Sunshade Assembly Components (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying Rear Sunshade Assembly Components (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Rear Sunshade Assembly Replacement Components With Torque Specifications (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

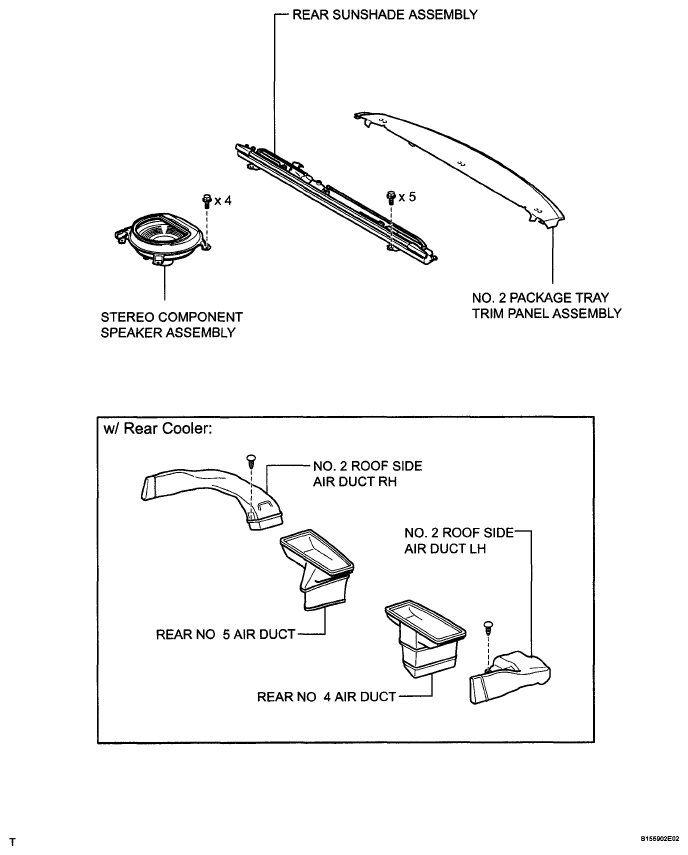

Fig 4: Rear Sunshade Assembly Replacement Components With Torque Specifications (4 Of 5)

Fig 5: Identifying Rear Sunshade Assembly Components (5 Of 5)
