Wiper and Washer: Notes

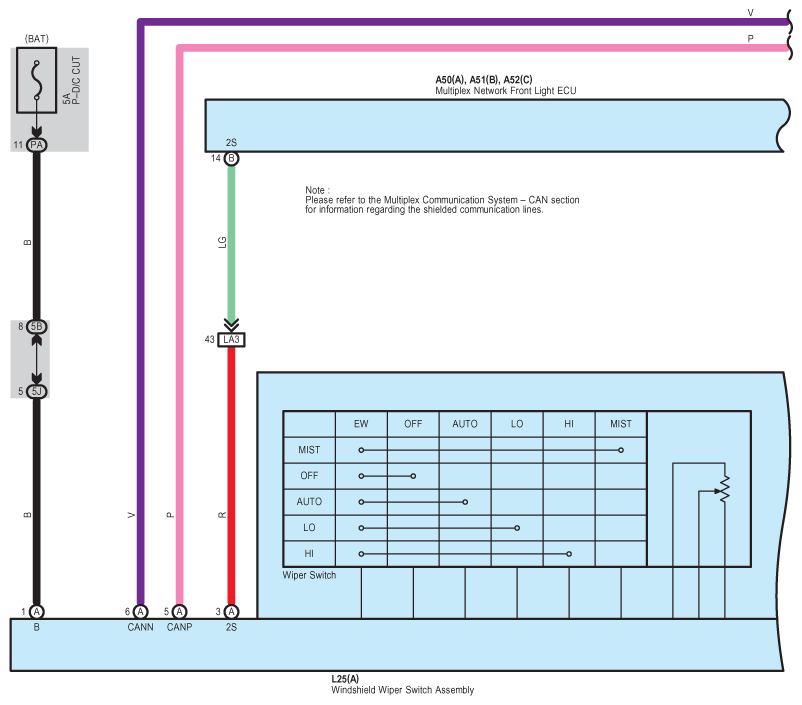

Fig 1: Wiper And Washer - Circuit Diagram (1 Of 4)
G07592888Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

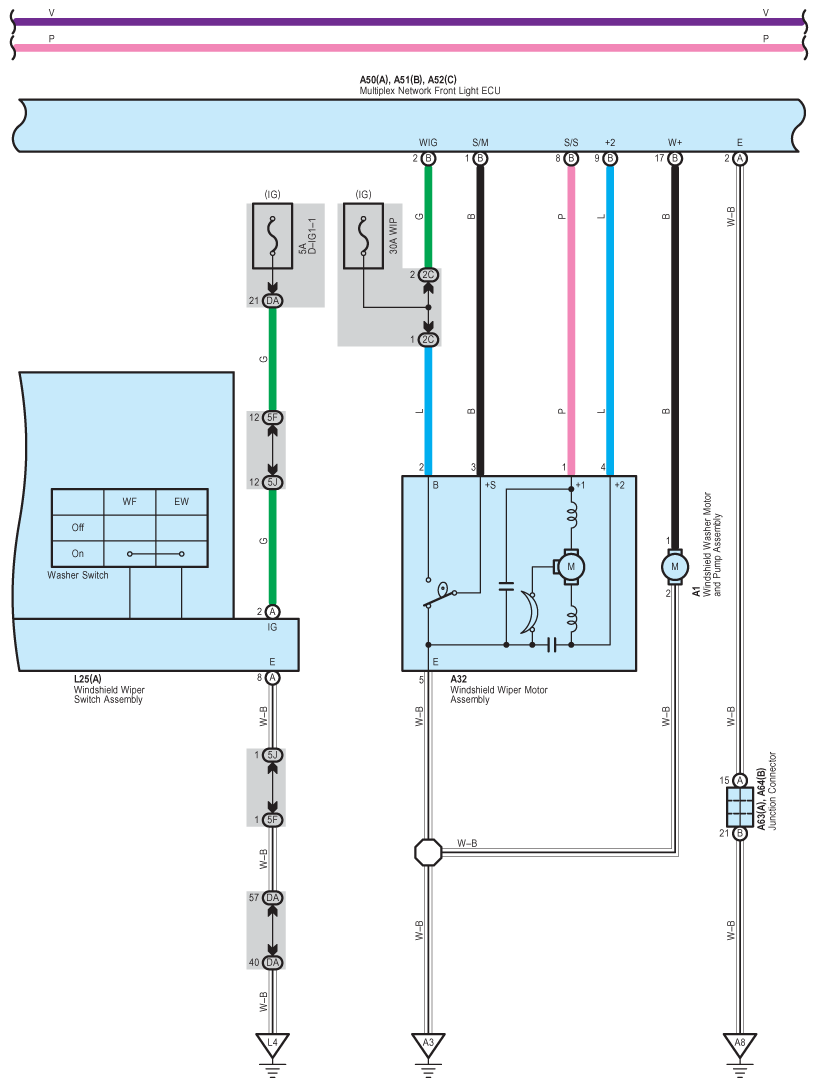

Fig 2: Wiper And Washer - Circuit Diagram (2 Of 4)
G07592889Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

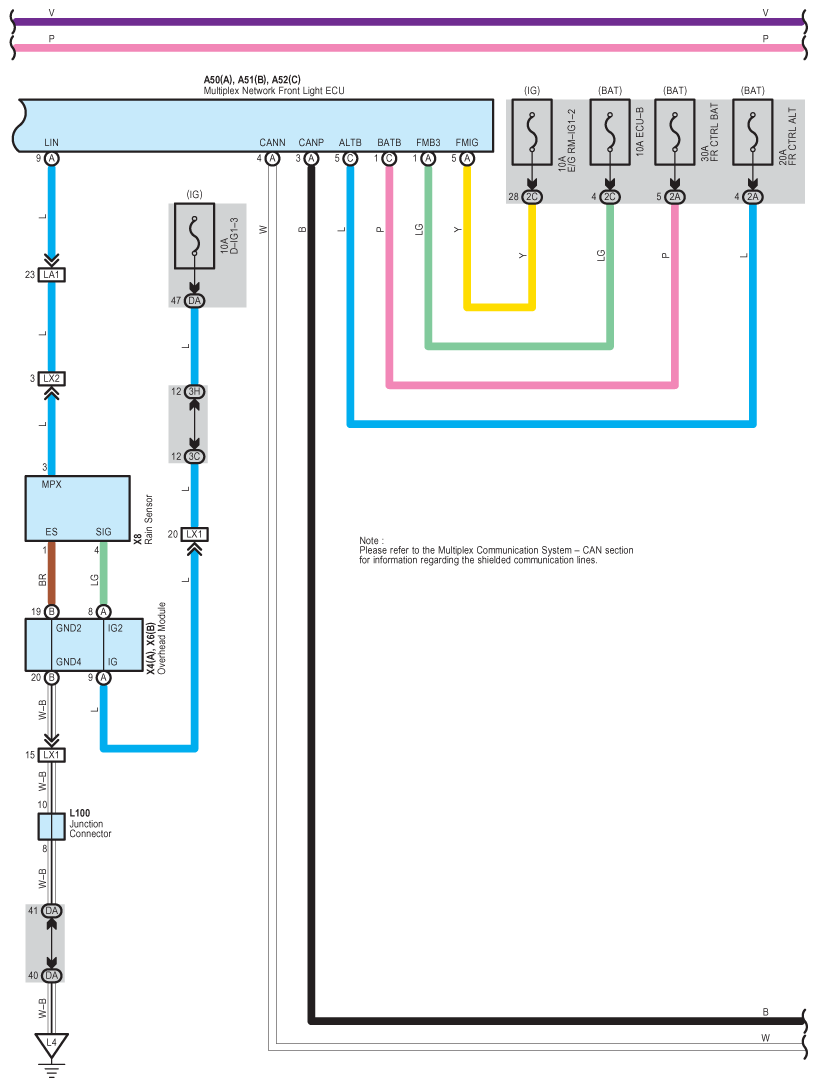

Fig 3: Wiper And Washer - Circuit Diagram (3 Of 4)
G07592890Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Wiper And Washer - Circuit Diagram (4 Of 4)
G07592891Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
