Heated Oxygen Sensor: Components

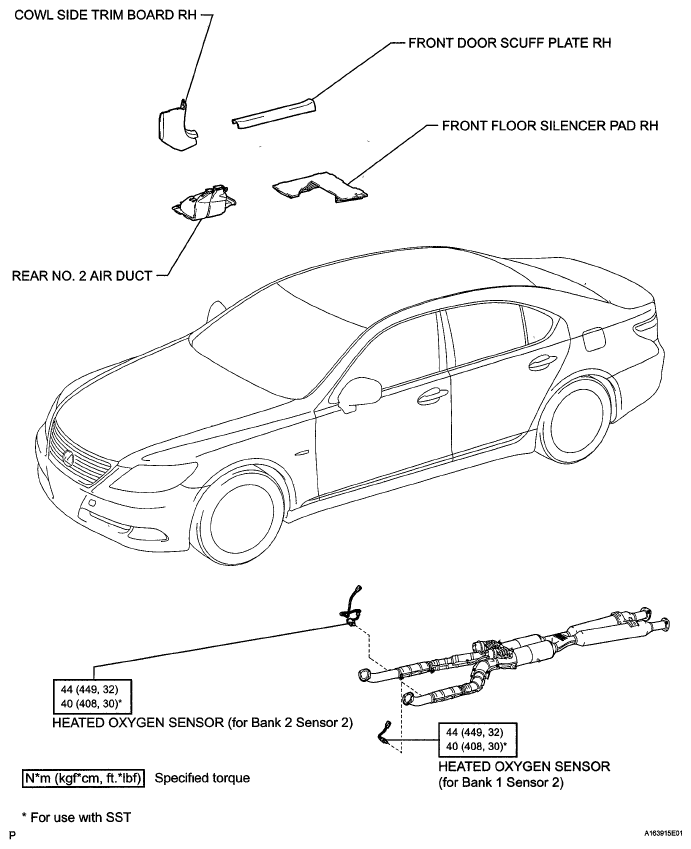

Fig 1: Heated Oxygen Sensor With Torque Specifications
G05771275Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
