Oil Pressure Switch: Components

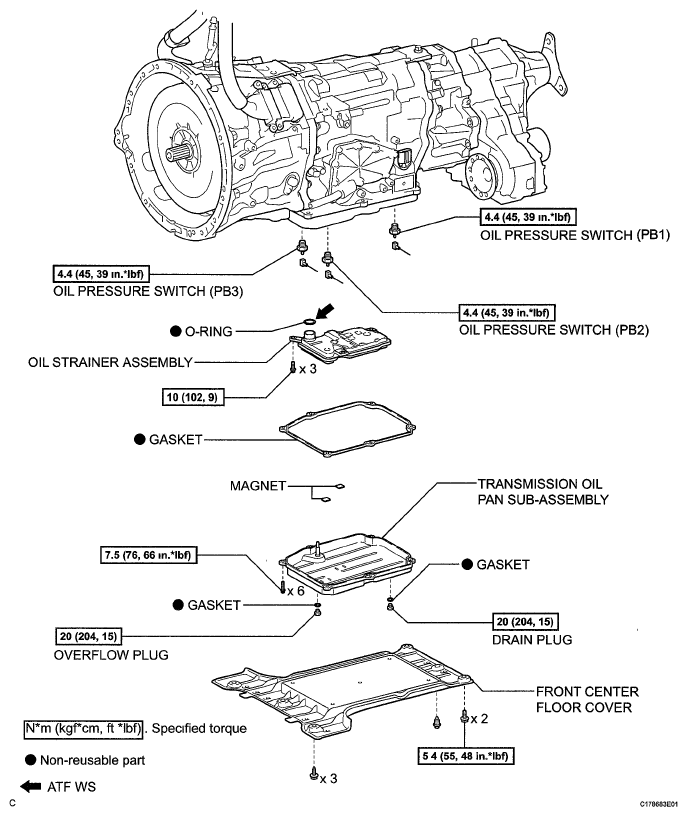

Fig 1: Oil Pressure Switch With Torque Specifications
G05781088Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
