Front And Side Monitor Main Switch: Inspection

  1. INSPECT FRONT AND SIDE MONITOR MAIN SWITCH
    1. Measure the resistance according to the value (s) in the table below.

      Standard Resistance

      RESISTANCE REFERENCE

      Tester Connection Switch Condition Specified Condition
      7 (ECU) - 6 (IG) Front and side monitor main switch on Below 1 Ω
      7 (ECU) - 6 (IG) Front and side monitor main switch off 10 kΩ or higher

      If the result is not as specified, replace the switch.

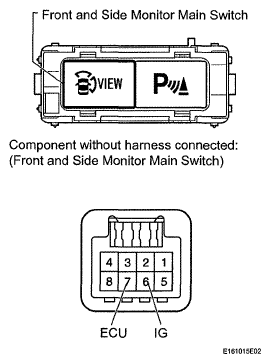

      Fig 1: Identifying Front And Side Monitor Main Switch Connector Terminal
      G05763614Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
