ECU Power Source Circuit: Wiring Diagram

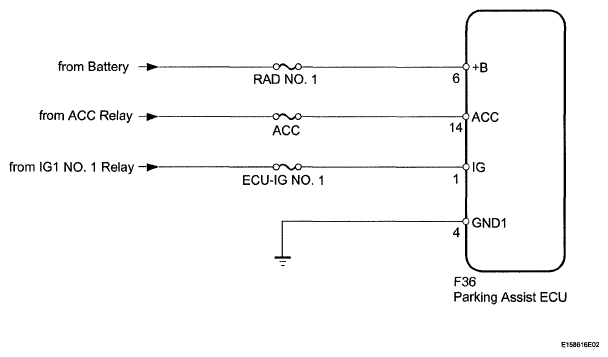

Fig 1: ECU Power Source - Wiring Diagram
G05763520Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
