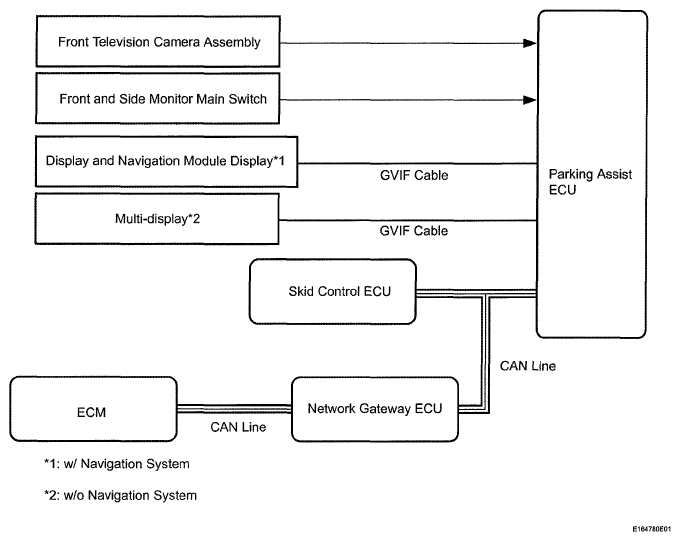

System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Communication Table
COMMUNICATION REFERENCE
| Sender ECU |
Receiver ECU |
Signal |
Line |
| Skid Control ECU |
Parking Assist ECU |
Vehicle speed signal |
CAN |
| ECM |
Parking Assist ECU |
Shift position signal |
CAN |
