System Diagram

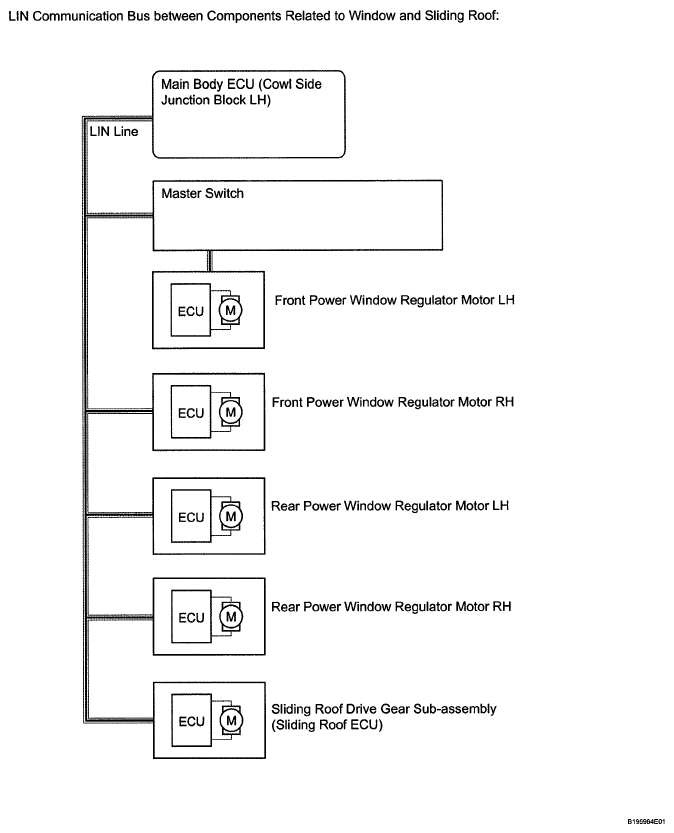

Fig 1: LIN Communication System - System Diagram (1 Of 5)
G05764873Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

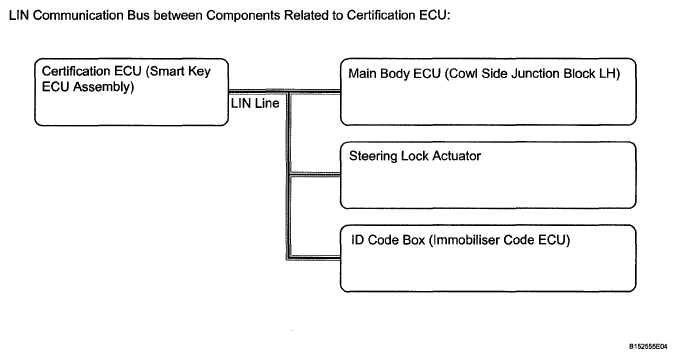

Fig 2: LIN Communication System - System Diagram (2 Of 5)
G05639335Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

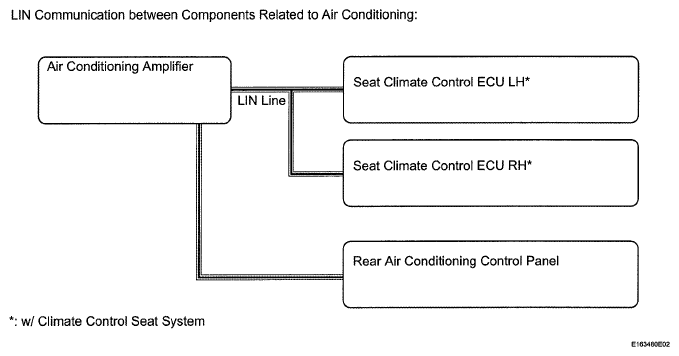

Fig 3: LIN Communication System - System Diagram (3 Of 5)
G05764875Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

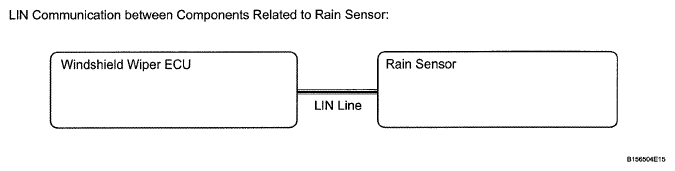

Fig 4: LIN Communication System - System Diagram (4 Of 5)
G05764876Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

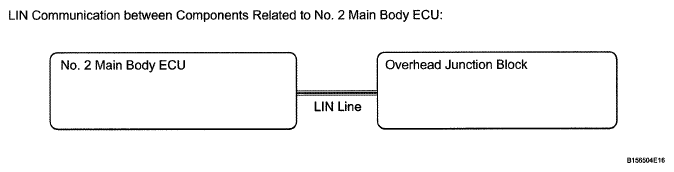

Fig 5: LIN Communication System - System Diagram (5 Of 5)
G05764877Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
