Inspection Procedure

NOTE: When the distance control ECU is replaced with a new one, initialization must be performed (See INITIALIZATION  ).
  1. CHECK HARNESS AND CONNECTOR (MILLIMETER WAVE RADAR SENSOR - DISTANCE CONTROL ECU)
    1. Disconnect the A44 millimeter wave radar sensor connector.
    2. Disconnect the E86 distance control ECU connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      STANDARD RESISTANCE SPECIFICATION

      Tester Connection Condition Specified Condition
      A44-2 (SGND) - E86-10 (SGND) Always Below 1 Ω
      A44-5 (IGB) - E86-13 (IGB)
      E86-13 (IGB) - Body ground Always 10 kΩ or higher
      A44-5 (IGB) - Body ground

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

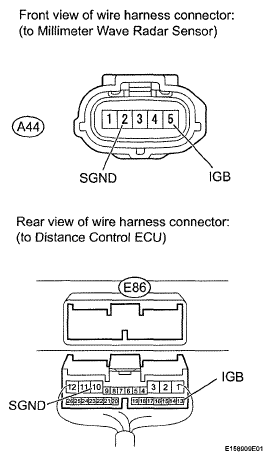

    Fig 1: Identifying A44 Millimeter Wave Radar Sensor And E86 Distance Control ECU Connectors
    G05760418Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK: Go to next step

  2. CHECK DISTANCE CONTROL ECU (IGB VOLTAGE)
    1. Disconnect the A44 millimeter wave radar sensor connector.
    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      STANDARD VOLTAGE SPECIFICATION

      Tester Connection Switch Condition Specified Condition
      A44-5 (IGB) - A44-2 (SGND) Engine switch on (IG) 11 to 14 V

    NG: REPLACE DISTANCE CONTROL ECU  (See REMOVAL  )

    Fig 2: Identifying A44 Millimeter Wave Radar Sensor Connector
    G05760419Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK: Go to next step

  3. CHECK HARNESS AND CONNECTOR (MILLIMETER WAVE RADAR SENSOR - ECM)
    1. Disconnect the A44 millimeter wave radar sensor connector.
    2. Disconnect the A38 ECM connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      STANDARD RESISTANCE SPECIFICATION

      Tester Connection Condition Specified Condition
      A44-1 (LGND) - A38-44 (LGND) Always Below 1 Ω
      A44-1 (LGND) - Body ground Always 10 kΩ or higher

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

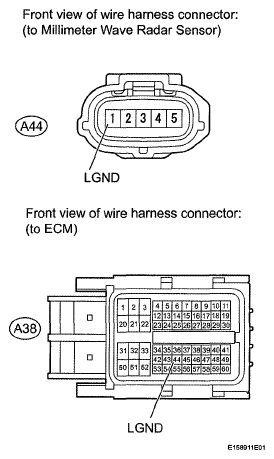

    Fig 3: Identifying A44 Millimeter Wave Radar Sensor And A38 ECM Connectors
    G05760420Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE  (See PROBLEM SYMPTOMS TABLE  )
