Operation Check

INPUT SIGNAL CHECK
1. Connect the Techstream to the DLC3.
2. Check the cruise control main switch (ON-OFF, CANCEL, -SET, +RES, and MODE) using the Data List function in the Techstream.
INSPECT MODE SWITCH
1. Turn the engine switch on (IG).
2. Turn the cruise control main switch on. Then push the cruise control main switch to MODE for 1 second or more to change to constant speed control mode. Check that "NORMAL" is indicated on the multi-information display.

  Fig 2: Identifying Cruise Control Main Switch Position
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: Do not push any other switches before pushing the cruise control main switch to MODE. If another switch is pushed, turn the control switch off and repeat the procedure above.

  HINT:

  If a malfunction is detected, turn the engine switch off and repeat the procedure above.
INSPECT STEERING PAD SWITCH
1. Turn the engine switch on (IG).
2. Turn the cruise control main switch on. Then push the cruise control main switch to MODE for 1 second or more to change to vehicle-to-vehicle distance control mode. Check that "RADAR READY" is indicated on the multi-information display.
3. Turn on the distance control switch of the steering pad switch.
4. Check that the indication of the vehicle-to-vehicle distance, which is shown in the multi-information display on the combination meter, changes from long to middle to short in that order.

  Fig 3: Identifying Distance Control Switch
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

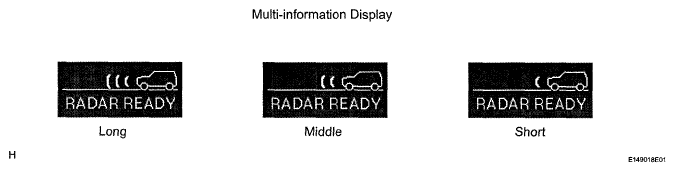

  Fig 4: Multi-Information Screen Display
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  The indication is automatically set to long each time the engine is started.
