Display and Navigation Assembly Power Source Circuit: Wiring Diagram

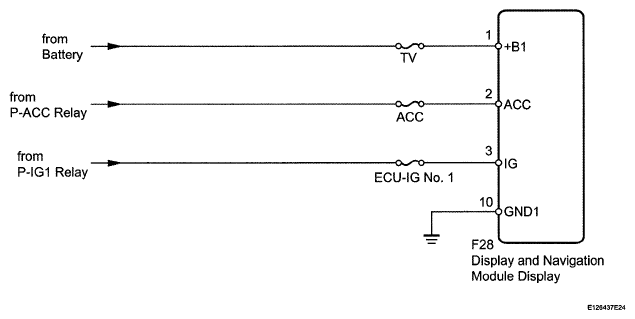

Fig 1: Display And Navigation Assembly Power Source Circuit - Wiring Diagram
G05763342Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
