Inspection Procedure

1. Enter the diagnostic mode.
2. Press the "LAN Mon" switch to change to "LAN Monitor" mode.
3. Identify the component shown by the sub-code.

   HINT:

   • "118 (display and navigation module display)" is the component shown by the sub-code in the example shown in the illustration.
   • The sub-code will be indicated by its physical address.
   • For the component list, refer to Diagnosis Display Detailed Description in the System Description (See SYSTEM DESCRIPTION  ).
     Fig 1: Diagnosis Display - LAN Monitor Screen

     Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Inspect the power source circuit of the component shown by the sub-code.

   Component Table

   COMPONENT REFERENCE



   Component	Proceed to
   Radio receiver (190)	Radio receiver power source circuit (See RADIO RECEIVER POWER SOURCE CIRCUIT )
   Stereo component amplifier (440)	Stereo component amplifier power source circuit (See STEREO COMPONENT AMPLIFIER POWER SOURCE CIRCUIT )
   Display and navigation module display (118)	Display and navigation assembly power source circuit (See DISPLAY AND NAVIGATION ASSEMBLY POWER SOURCE CIRCUIT  )
   Parking assist ECU (1AC)	Parking assist ECU power source circuit (See ECU POWER SOURCE CIRCUIT )
   Satellite radio tuner (1F1)	Satellite radio tuner power source circuit (See SATELLITE RADIO TUNER POWER SOURCE CIRCUIT  )

   If the power source circuit is operating normally, proceed to the next step.

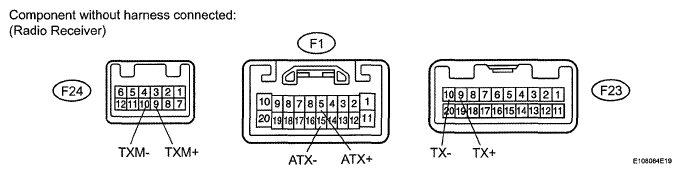

Fig 2: Identifying Radio Receiver Assembly Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the F1, F23 and F24 receiver connectors.
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   TESTER CONNECTION SPECIFIED CONDITION



   Tester Connection	Condition	Specified Condition
   F1-5(ATX+) - F1-15 (ATX-)	Always	60 to 80 Ω
   F23-9(TX+) - F23-10 (TX-)	Always	60 to 80 Ω
   F24-9(TXM+) - F24-10 (TXM-)	Always	60 to 80 Ω

NG: REPLACE RADIO RECEIVER ASSEMBLY  (See REMOVAL )

OK: Go to Next Step

HINT:

• Start the check from the circuit that is near the component shown by the sub-code first.
• For details of the connectors, refer to TERMINALS OF ECU  (See ).

1. Referring to the AVC-LAN wiring diagram, check the AVC-LAN circuit between the television display and the component shown by the sub-code.
   1. Disconnect all connectors between the television display and the component shown by the sub-code.
   2. Check for an open or short in the AVC-LAN circuit between the television display and the component shown by the sub-code.

      OK: There is no open or short circuit.

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to Next Step

1. Replace the component shown by the sub-code with a normal one and check if the same problem occurs again.

   OK: Same problem does not occur.

NG: REPLACE TELEVISION DISPLAY ASSEMBLY  (See TELEVISION DISPLAY )

OK: END
