Air Pump: Components

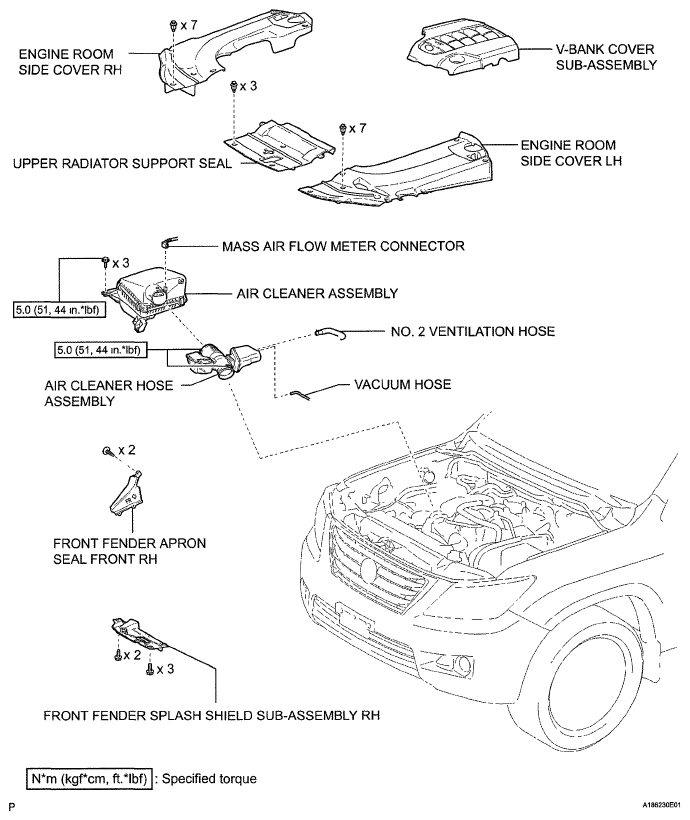

Fig 1: Air Pump Replacement Components With Torque Specifications (1 Of 2)
G05759664Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

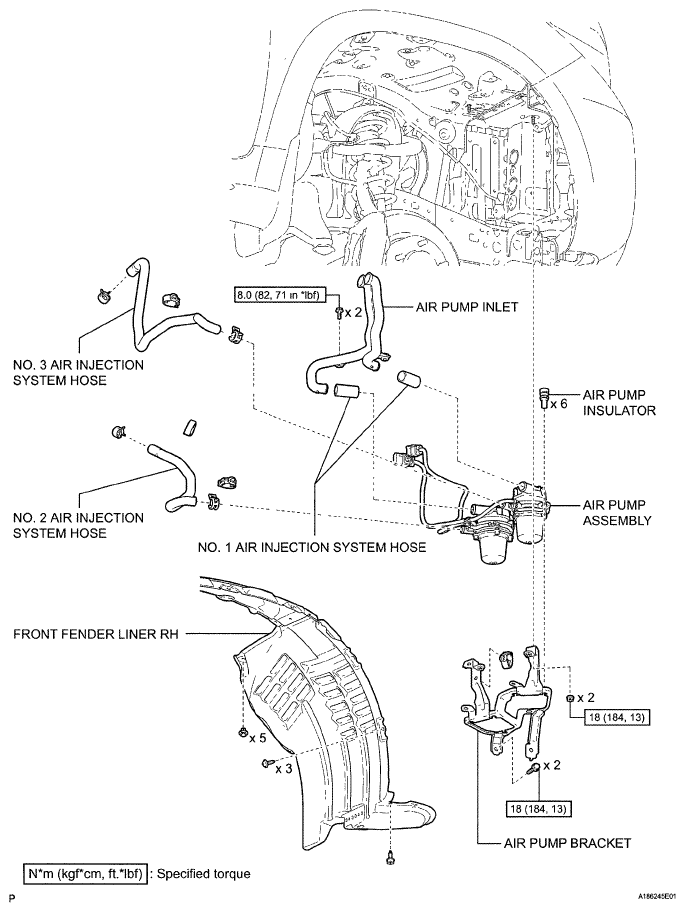

Fig 2: Air Pump Replacement Components With Torque Specifications (2 Of 2)
G05759665Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
