Cooling System (Mechanical): Cooling: Radiator: Components

Fig 1: Water Pump Replacement Components With Torque Specifications (1 Of 3)
G05759850Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

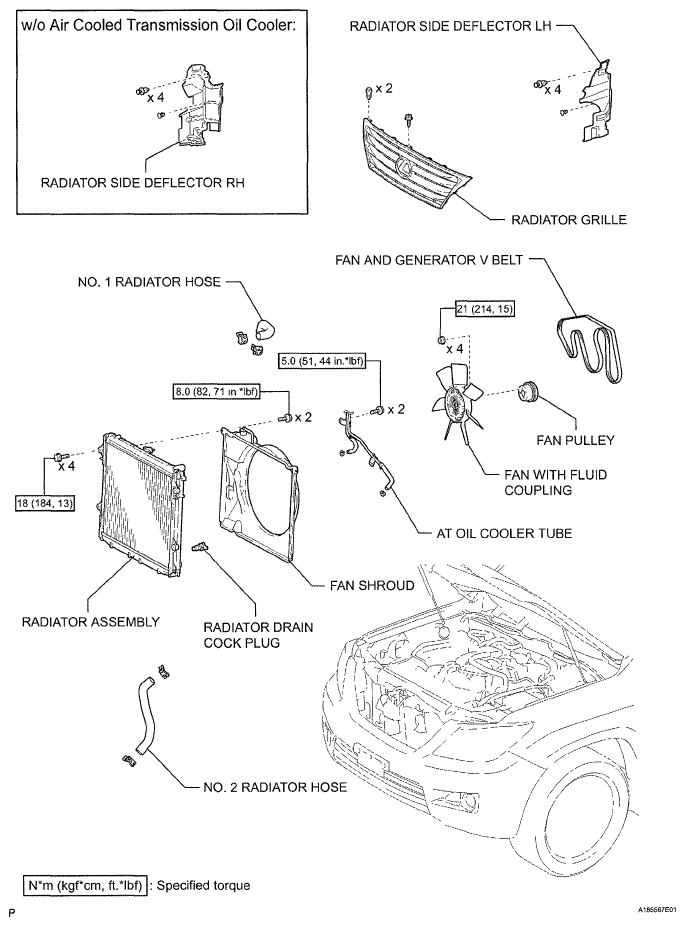

Fig 2: Radiator Replacement Components With Torque Specifications (2 Of 2)
G05759879Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
