Fuel Tank: Components

Fig 1: Identifying Fuel Tank Components
G05759609Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

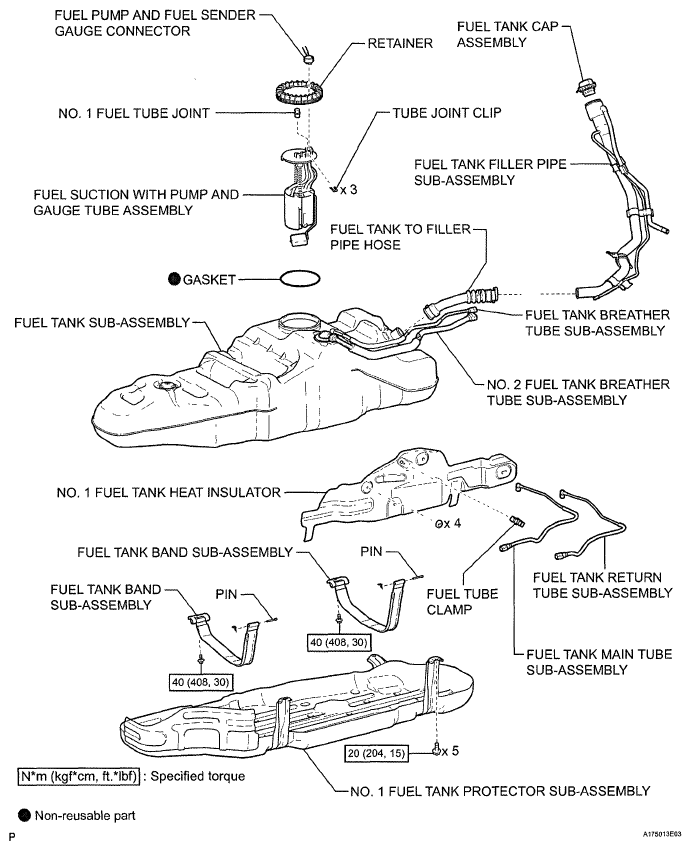

Fig 2: Fuel Tank Replacement Components With Torque Specifications
G05759610Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
