ACIS Control Circuit: Wiring Diagram

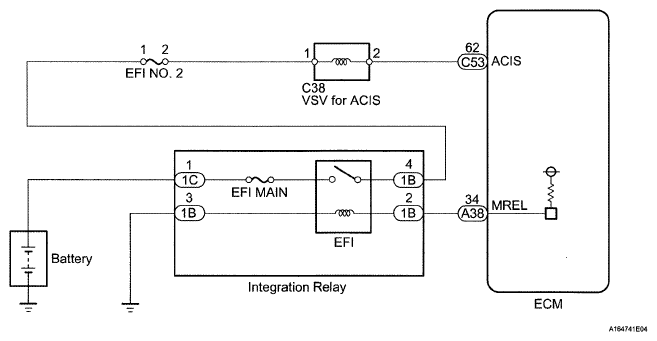

Fig 1: ACIS Control - Wiring Diagram
G05628191Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
