Steering Control Ecu: Components

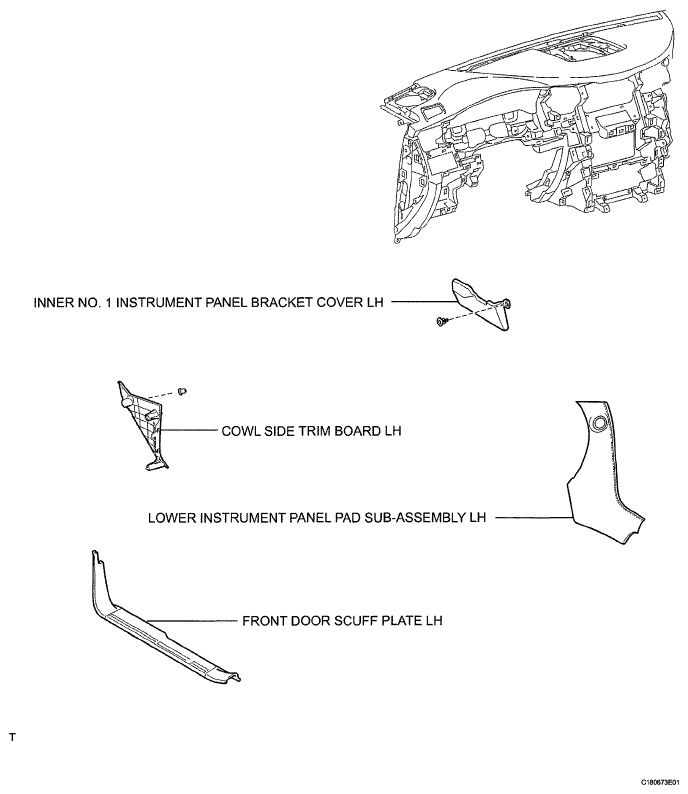

Fig 1: Identifying Steering Control ECU Components (1 Of 2)
G05762041Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Steering Control ECU Components (2 Of 2)
G05762042Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

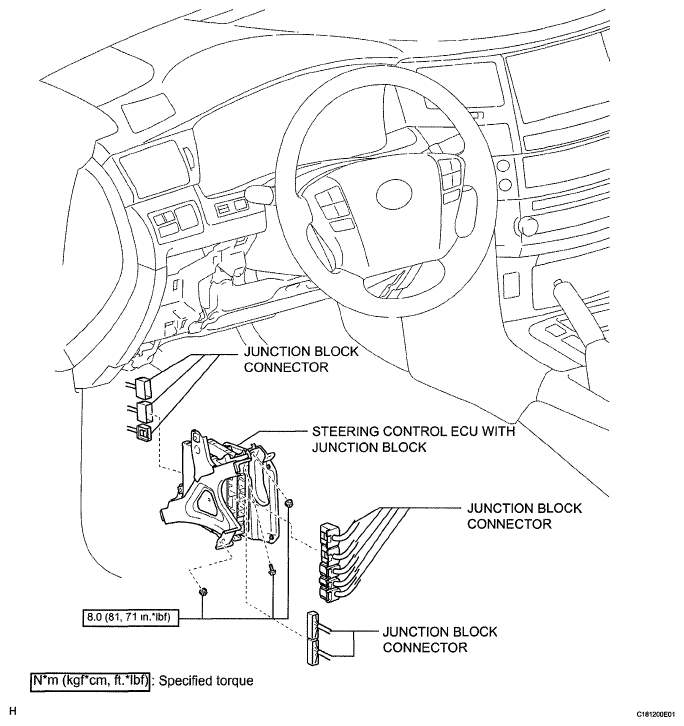

Fig 3: Steering Control ECU Replacement Components With Torque Specifications (1 Of 2)
G05762043Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

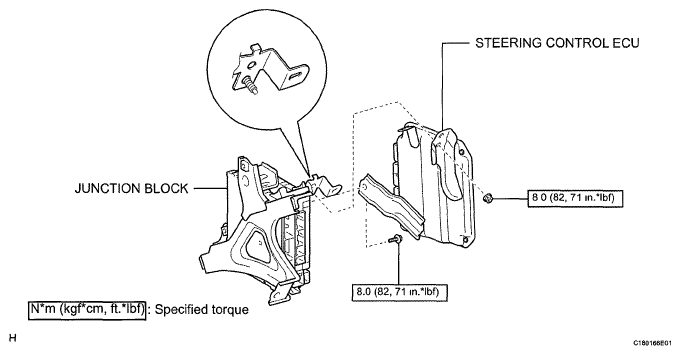

Fig 4: Steering Control ECU Replacement Components With Torque Specifications (2 Of 2)
G05762044Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
