Home >> Lexus >> 2008 >> LX 570 >> Repair and Diagnosis >> Steering >> Steering Column >> Steering Column >> Steering Wheel >> Components
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Steering Wheel: Components

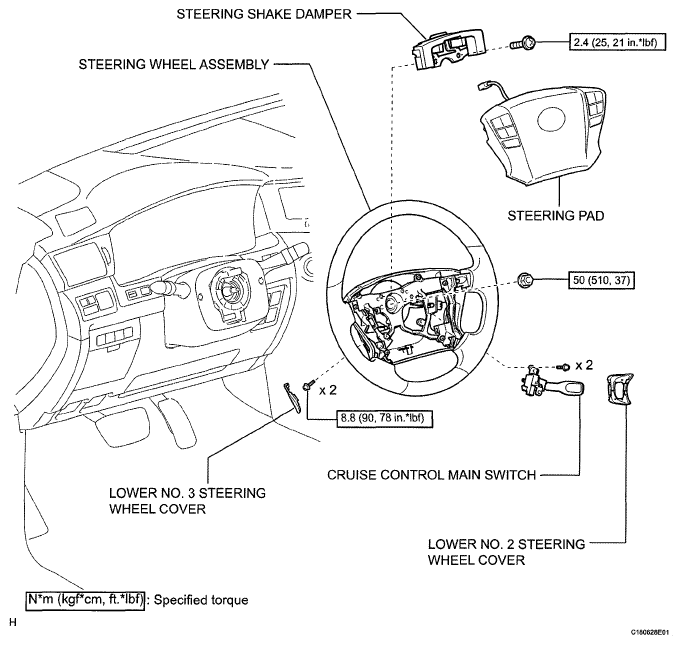

Fig 1: Steering Wheel Replacement Components With Torque Specifications
G05762640Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
