Control Valve Assembly: Removal

  1. REMOVE TAILPIPE ASSEMBLY  (See REMOVAL )
  2. REMOVE CENTER EXHAUST PIPE ASSEMBLY  (See REMOVAL )
  3. REMOVE HEIGHT CONTROL UNIT INSULATOR
    1. Remove the 3 bolts and insulator from the control unit.
      2. Fig 1: Locating Height Control Unit Bolts
      G05761386Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE CLAMP
    1. Remove the clamp from the 3 height control tubes.
  5. DISCHARGE SUSPENSION FLUID PRESSURE  (See REMOVAL )
  6. REMOVE NO. 7 HEIGHT CONTROL TUBE  (See INSTALLATION )
  7. DISCONNECT REAR NO. 4 HEIGHT CONTROL TUBE
    1. Disconnect the connector.
    2. Remove the union bolt and gasket, then disconnect the rear No. 4 height control tube from the control valve.
      3. Fig 2: Locating Rear No. 4 Height Control Tube
      G05761387Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE NO. 5 HEIGHT CONTROL TUBE
    1. Using a union nut wrench, remove the No. 5 height control tube from the control valve and center cylinder.

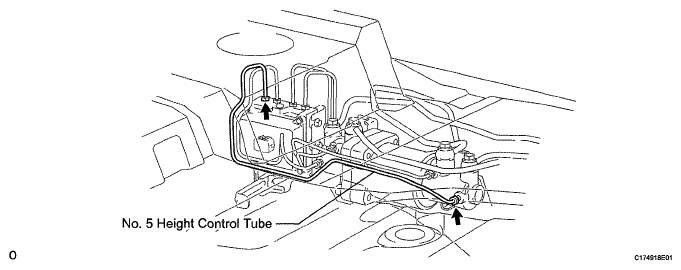

    Fig 3: Locating Rear No. 5 Height Control Tube
    G05761388Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE NO. 5 HEIGHT CONTROL TUBE LH
    1. Using a union nut wrench, remove the No. 5 height control tube LH from the control valve and center cylinder.
    Fig 4: Locating NO. 5 Height Control Tube LH
    G05761389Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE NO. 6 HEIGHT CONTROL TUBE
    1. Using a union nut wrench, remove the No. 6 height control tube from the control valve and center cylinder.
      2. Fig 5: Locating No. 6 Height Control Tube
      G05761390Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE NO. 6 HEIGHT CONTROL TUBE LH
    1. Using a union nut wrench, remove the No. 6 height control tube LH from the control valve and center cylinder.

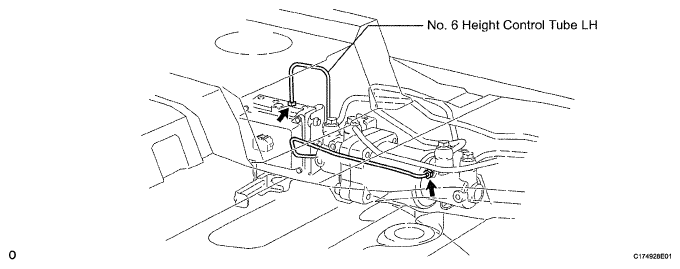

    Fig 6: Locating No. 6 Height Control Tube LH
    G05761391Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE NO. 1 HEIGHT CONTROL VALVE ASSEMBLY
    1. Remove the 3 nuts and control valve.
    2. Remove the 3 bolt holders and 3 bolt cushions from the control valve.
    Fig 7: Locating No. 1 Height Control Valve Nuts
    G05761392Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
