Automatic Transmission Unit: Components

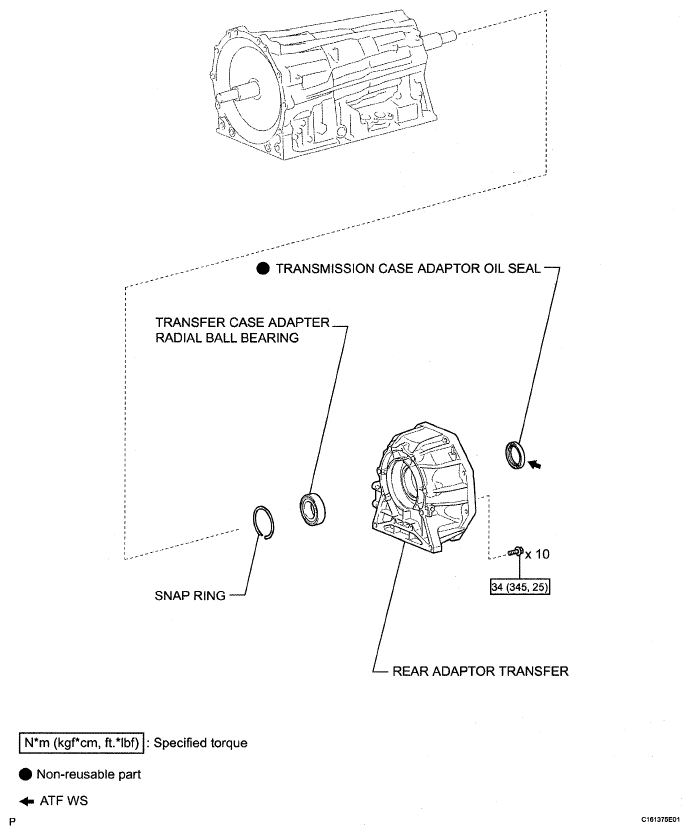

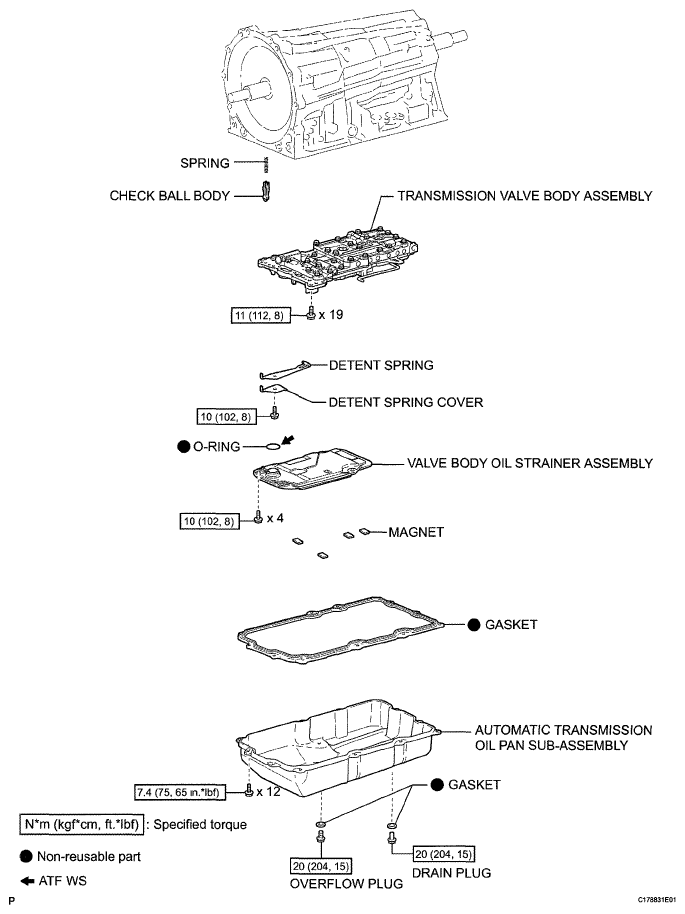

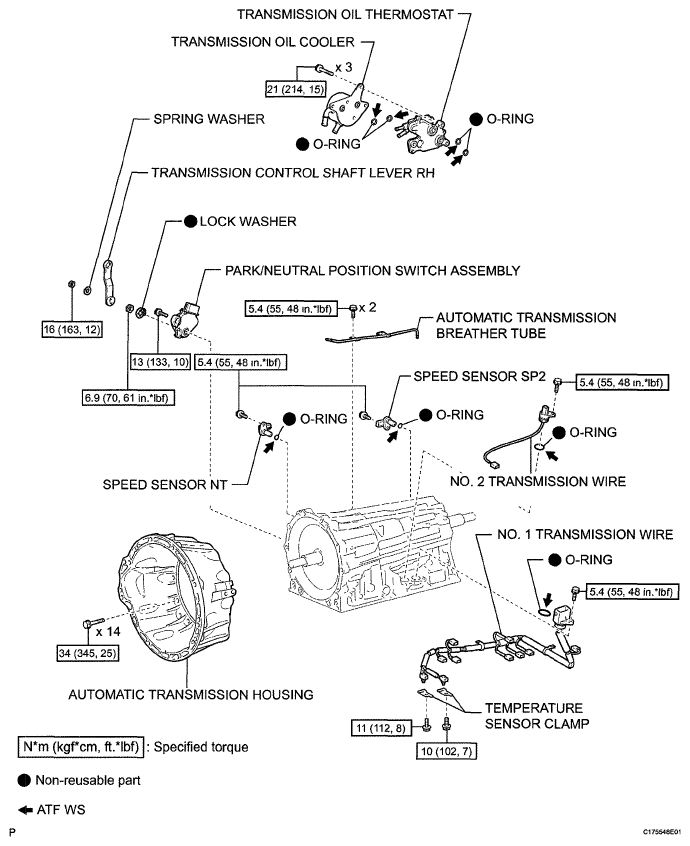

Fig 1: Automatic Transmission Unit Components With Torque Specifications (1 Of 10)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

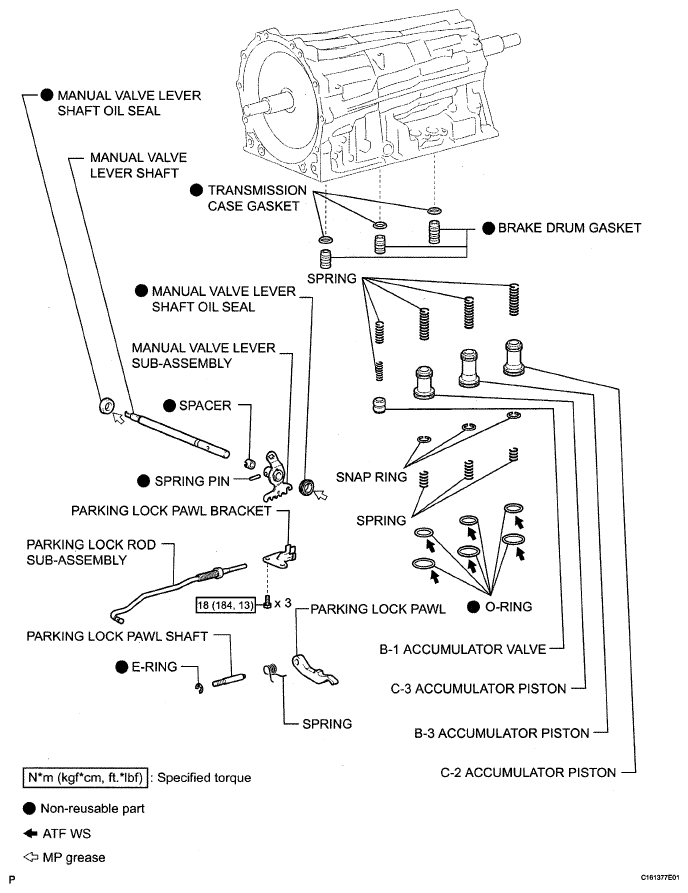

Fig 2: Automatic Transmission Unit Components With Torque Specifications (2 Of 10)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

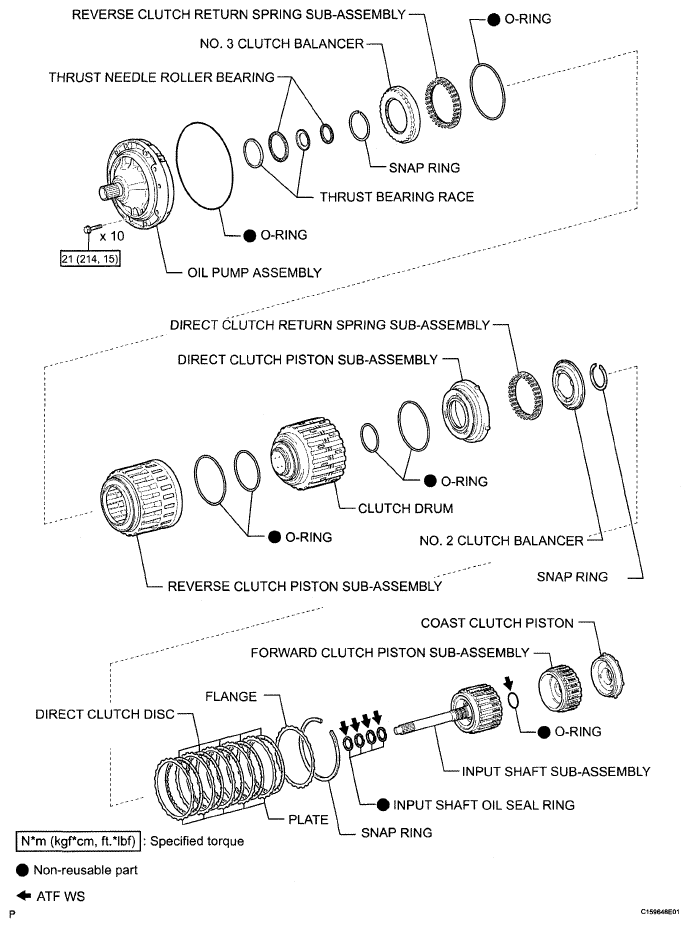

Fig 3: Automatic Transmission Unit Components With Torque Specifications (3 Of 10)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

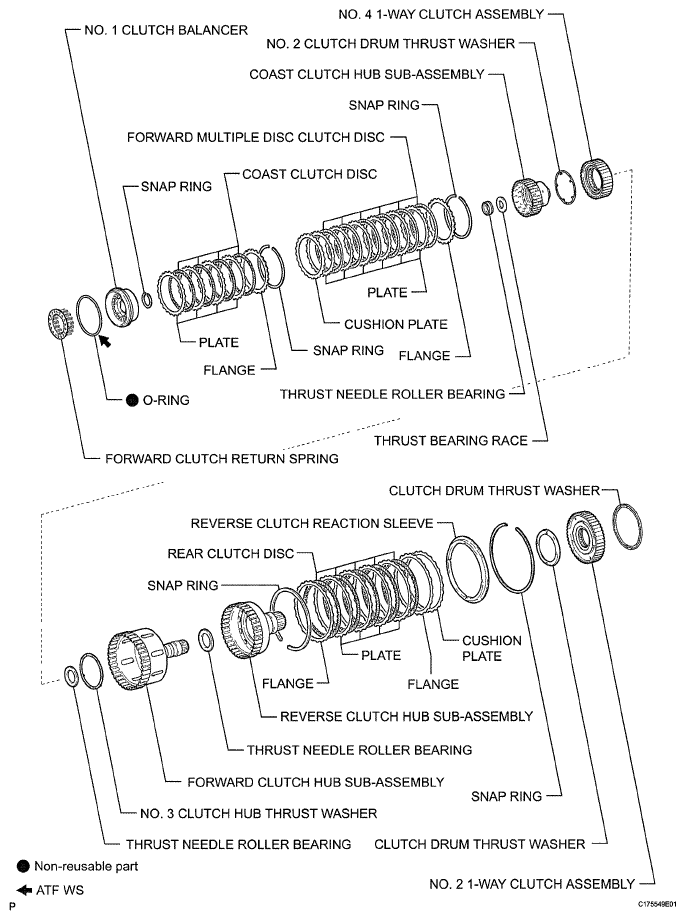

Fig 4: Automatic Transmission Unit Components With Torque Specifications (4 Of 10)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 5: Automatic Transmission Unit Components With Torque Specifications (5 Of 10)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

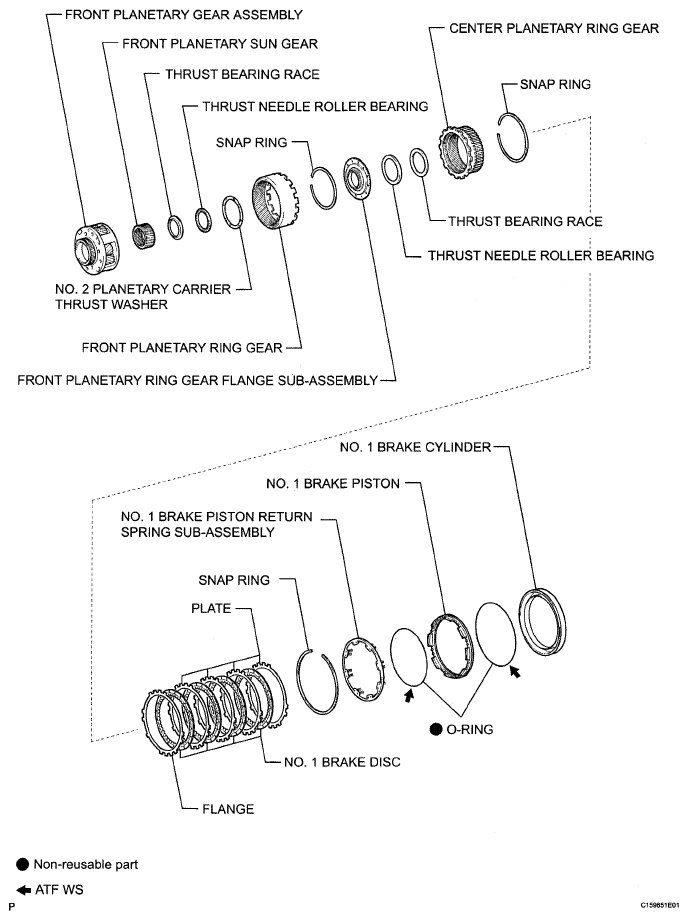

Fig 6: Identifying Automatic Transmission Unit Components (6 Of 10)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

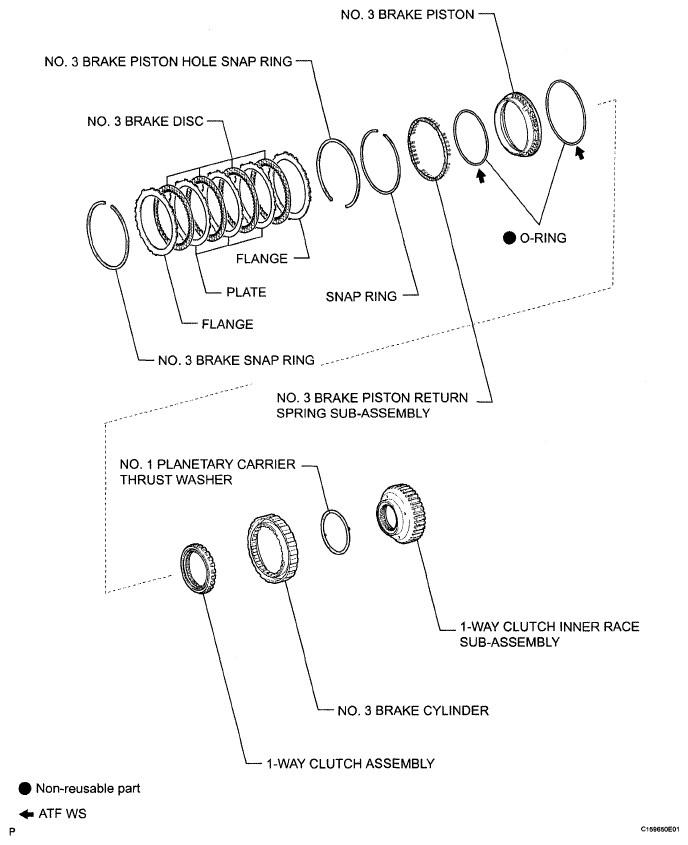

Fig 7: Identifying Automatic Transmission Unit Components (7 Of 10)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

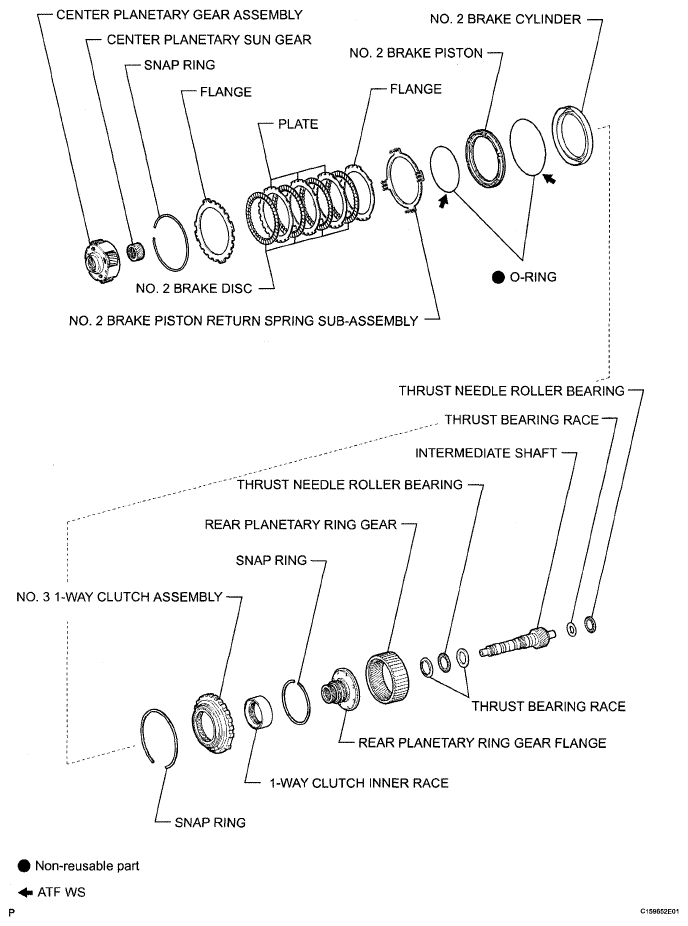

Fig 8: Identifying Automatic Transmission Unit Components (8 Of 10)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 9: Identifying Automatic Transmission Unit Components (9 Of 10)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

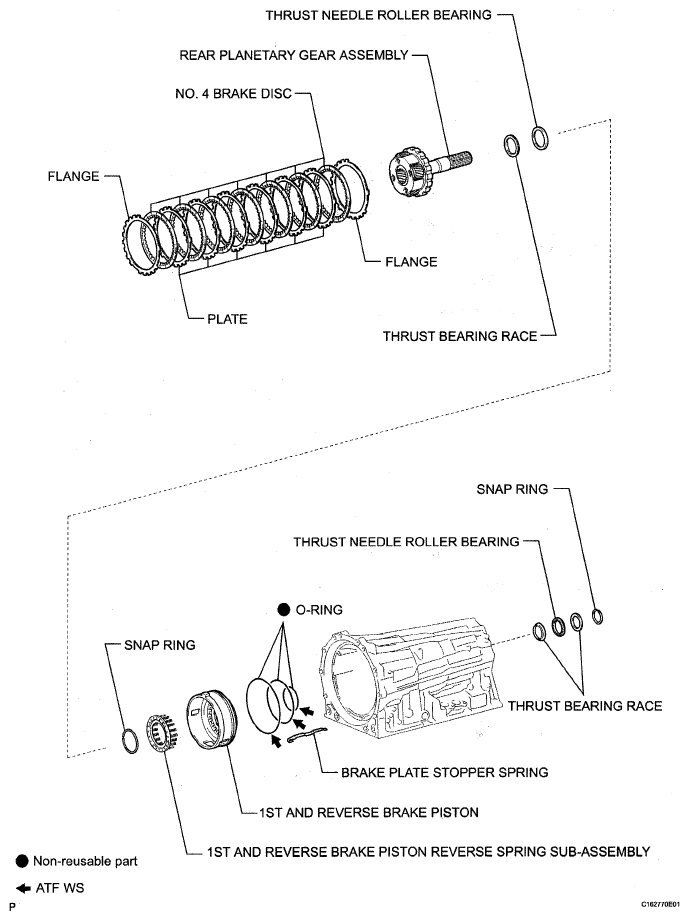

Fig 10: Identifying Automatic Transmission Unit Components (10 Of 10)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
