Park/ Neutral Position Switch: Components

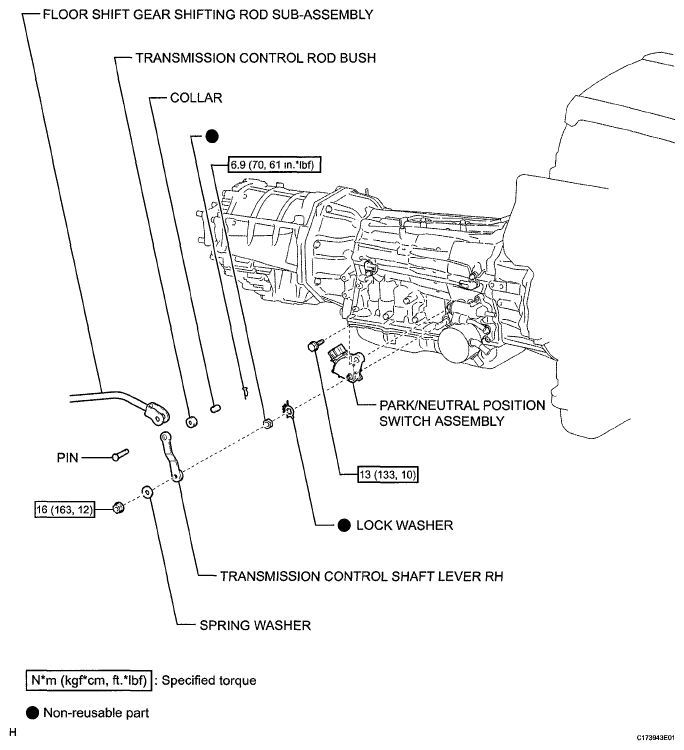

Fig 1: Park/ Neutral Position Switch Replacement Components With Torque Specifications
G05760648Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
