DTC C1231/31 Steering Angle Sensor Circuit Malfunction: Wiring Diagram

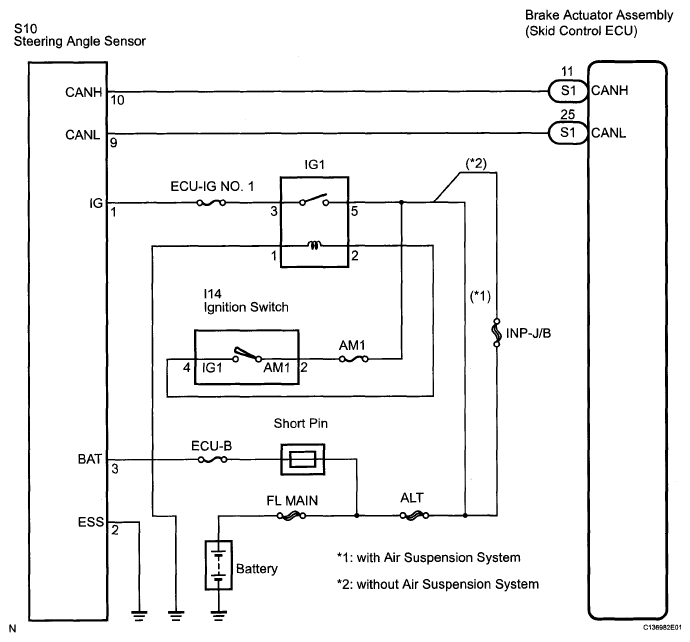

Fig 1: Steering Angle Sensor And Brake Actuator - Wiring Diagram
G05841891Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
